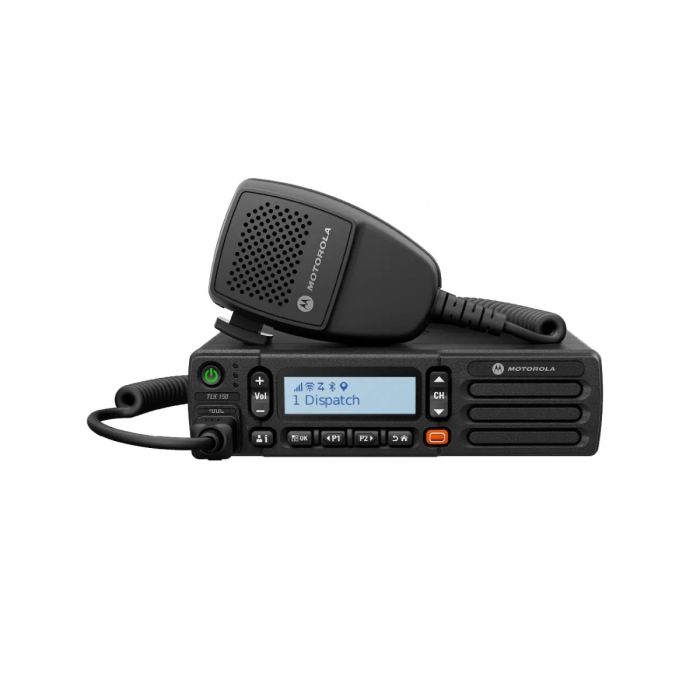

Motorola WAVE Two-Way Mobile - (TLK150)

The Motorola TLK150 is best understood as a mobile broadband PTT radio built for modern fleet and field operations. Unlike conventional mobile two-way radios that depend on assigned frequencies, licensed spectrum, and repeater infrastructure, the TLK150 works through the WAVE PTX service, using 4G LTE, 3G, and Wi-Fi connectivity to deliver communications across much larger service areas. Motorola presents it as a way to increase coverage, connections, and productivity without expanding radio infrastructure.

This design makes the TLK150 especially relevant for organizations with regional or nationwide operations, such as transportation fleets, field service teams, delivery companies, logistics providers, utility contractors, security operations, and multi-site businesses. Because it integrates with WAVE PTX-enabled smartphones, tablets, PCs, and radios, it supports mixed-device communications rather than forcing every user onto the same hardware platform. That interoperability is one of the TLK150’s most important advantages in practical deployments.

Motorola also frames the TLK150 as a device built for safer in-vehicle operation. The official datasheets emphasize a simple mobile form factor, clear audio, and tactile operation, which align with the demands of drivers and mobile workers who need dependable contact without complex interaction. In other words, the TLK150 is intended to bring professional mobile-radio ergonomics into the world of broadband push-to-talk.

Design and Features

Broadband mobile radio form factor

The TLK150 is physically designed as a mobile radio unit for installation in vehicles or fixed console-style positions. Motorola describes it as a rugged mobile form factor for WAVE PTX deployment, and reseller and datasheet sources consistently show it as a dashboard or console-mount device with a hand microphone and dedicated controls rather than as a general-purpose smartphone substitute.

Nationwide and wide-area push-to-talk

A defining feature of the TLK150 is its ability to provide wide-area communications over broadband networks. Motorola’s official product page and datasheets describe it as a nationwide push-to-talk or secure PTT on the go solution using 4G LTE, 3G, and Wi-Fi. This is the core reason organizations consider the TLK150: it can connect teams across far wider territories than a localized conventional repeater system, as long as network coverage is available.

Private and group calling

Motorola lists private and group push-to-talk as key feature highlights for the TLK150. This means users can communicate one-to-one or one-to-many using a familiar radio-style workflow. For supervisors, dispatch-linked teams, and operational workgroups, that preserves the speed and discipline of radio communications while benefiting from broadband coverage.

Over-the-air device management

One of the TLK150’s most business-friendly capabilities is over-the-air device management. Motorola highlights this directly in the datasheet, and it is especially useful for fleets because it reduces the need for manual programming sessions and hands-on device setup. For organizations managing many vehicles or distributed teams, this can significantly simplify rollout and ongoing administration.

GPS location tracking and real-time presence

Motorola also lists GPS location tracking and real-time presence among the TLK150’s core features. In operational terms, that helps dispatchers and supervisors know where mobile units are and whether users are available, which can improve routing, safety, and response times. These functions are particularly relevant in delivery, field service, security, and transport applications.

Bluetooth and Wi-Fi support

The TLK150 supports Bluetooth and Wi-Fi, making it more flexible than a narrowband mobile radio in terms of installation and accessory workflows. Motorola’s datasheets explicitly list Bluetooth and Wi-Fi among its core capabilities, and reseller sources further specify 802.11 a/b/g/n Wi-Fi and Bluetooth 4.2 BR/EDR + BLE.

Technology and Specifications

Network and platform

The TLK150 is a WAVE PTX broadband radio, not a conventional licensed-spectrum mobile radio. Motorola states that it operates using 4G LTE, 3G, and Wi-Fi connectivity, and that it works within the WAVE PTX ecosystem alongside smartphones, tablets, PCs, and other compatible radios. This architecture is central to understanding the product: the TLK150 is a subscription-based IP push-to-talk mobile radio rather than a traditional analog or DMR mobile.

Channel capacity

Reseller and technical sources list the TLK150 with 96 channels. In a broadband environment, “channels” are best understood as operational talkgroups or channel positions within the WAVE PTX experience rather than traditional RF channels. Still, this figure is widely cited in product information and is useful for buyers comparing operational capacity.

Dimensions and weight

Reseller specifications list the TLK150 at approximately 169 mm × 44 mm × 93 mm and about 1.41 lbs in weight. These figures place it firmly in the compact mobile-radio class and help explain why it can be installed in vehicles or adapted into base-station-style uses.

Power and vehicle support

Motorola’s official datasheet states that the TLK150 supports 12V/24V dual voltage, which is an important practical specification for fleet use because it broadens compatibility across passenger vehicles, vans, trucks, and heavier mobile platforms.

Location and antenna system

Reseller specifications identify GNSS / A-GNSS location support with compatibility for GPS, GLONASS, Galileo, and BeiDou, and note separate antenna arrangements including external LTE antennas, an external GNSS antenna, and internal Wi-Fi/Bluetooth antenna support. This matters in real deployments because antenna configuration can influence installation quality and location performance.

Durability

Motorola’s official datasheet lists the TLK150 as IP54 rated and compliant with MIL-STD-810G environmental testing categories, including temperature, rain, dust, vibration, and shock-related conditions. That places the TLK150 solidly in the professional mobile communications class rather than the consumer-device category.

Package contents

Reseller listings for the TLK150 commonly include the radio unit, a wideband compact mobile microphone, LTE dash/glass mount antenna, GNSS dash mount antenna, and DC power cable with inline fuse, along with documentation. Package details can vary by seller, but these components appear repeatedly in current listings.

Applications and Use Cases

Transportation and fleet management

The TLK150 is a strong fit for fleet communications, especially when vehicles operate across broad service territories. Motorola and reseller descriptions repeatedly emphasize mobile workforce communications, dispatch support, and nationwide contact. For delivery fleets, transport operators, and service vehicles, the TLK150 can replace or augment conventional mobile radios where infrastructure-free wide-area communication is more important than localized RF independence.

Logistics and warehousing

Because the TLK150 integrates with smartphones, tablets, and PCs through WAVE PTX, it is also well suited to warehouse and logistics workflows that involve both mobile units and office or dispatch personnel. A vehicle or yard team can stay connected to remote staff across cities or states without requiring everyone to use the same radio hardware.

Field service and utilities

The combination of GPS, presence, and broadband coverage makes the TLK150 useful for field service operations such as maintenance teams, contractors, and utility support. Supervisors can track and manage geographically dispersed personnel more easily than with a purely localized RF system, provided broadband coverage is sufficient in the operating area. This last point is an inference based on the TLK150’s network-dependent design.

Base-station and fixed-site use

Although built as a mobile radio, the TLK150 is also marketed by some resellers in base station form. This shows the platform’s flexibility: it can be used not only in vehicles but also in deskside or fixed communications roles where broadband push-to-talk is preferred.

Advantages / Benefits

No spectrum licensing or manual programming

Motorola emphasizes that WAVE PTX and the TLK150 avoid costly spectrum licensing and manual programming. For many organizations, especially those without existing radio infrastructure, this is one of the product’s biggest advantages. It reduces both deployment friction and ongoing administrative burden.

Broad coverage and cross-platform communication

Because the TLK150 operates over cellular and Wi-Fi networks and integrates with WAVE PTX-enabled smartphones, tablets, PCs, and radios, it can support communications across much larger areas and more diverse device types than a conventional standalone mobile radio.

Fleet-friendly management

Features such as over-the-air device management, GPS tracking, and real-time presence make the TLK150 particularly attractive for supervised fleet and service deployments. These are administrative and operational advantages that go beyond voice alone.

Professional mobile-radio usability

Unlike a smartphone app alone, the TLK150 provides a purpose-built mobile-radio form factor with tactile controls and in-vehicle installation. That makes it more suitable for organizations that want broadband push-to-talk without giving up the usability of a dedicated communications device.

FAQ Section

What is Motorola WAVE Two-Way Mobile (TLK150)?

It is a broadband push-to-talk mobile radio from Motorola Solutions that operates on the WAVE PTX platform using 4G LTE, 3G, and Wi-Fi rather than conventional licensed radio channels.

How does Motorola TLK150 work?

The TLK150 works by connecting to the WAVE PTX service over cellular and Wi-Fi networks, allowing users to make private and group push-to-talk calls and communicate with compatible smartphones, tablets, PCs, and other WAVE PTX radios.

Why is Motorola TLK150 important?

It is important because it offers a professional in-vehicle push-to-talk solution with wide-area coverage, over-the-air management, and no need for spectrum licensing or manual programming.

What are the benefits of Motorola TLK150?

Its main benefits include broadband nationwide push-to-talk, private and group calling, GPS location tracking, real-time presence, Bluetooth and Wi-Fi, over-the-air management, and integration with other WAVE PTX devices and apps.

Does the TLK150 require a radio license?

Motorola states that WAVE PTX deployment does not require costly spectrum licensing, because the TLK150 uses broadband connectivity rather than conventional licensed two-way radio frequencies.

Is the TLK150 a traditional two-way radio?

Not in the conventional narrowband sense. It is a purpose-built mobile push-to-talk device that behaves like a professional radio but operates through broadband WAVE PTX service instead of standard land-mobile-radio channels. This is an inference from Motorola’s product description.

Summary

The Motorola WAVE Two-Way Mobile (TLK150) is a purpose-built broadband push-to-talk mobile radio for fleets and mobile teams that need wide-area communications without traditional radio infrastructure. By combining 4G LTE, 3G, and Wi-Fi connectivity, private and group PTT, GPS tracking, over-the-air device management, and integration across WAVE PTX-enabled devices, the TLK150 provides a modern alternative to conventional in-vehicle two-way radio systems. For organizations seeking a nationwide LTE mobile radio, WAVE PTX fleet solution, or broadband vehicle push-to-talk platform, the TLK150 remains one of Motorola’s most distinctive and operationally relevant offerings.
