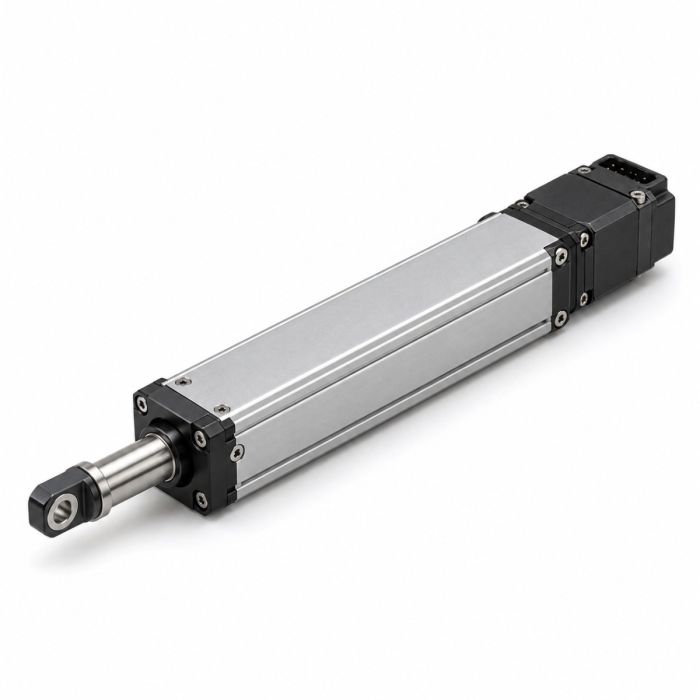

Xynova PRM10-25-47-100-F Linear Actuator
In stock
- MARKA:
- XYNOVA
- MODELI:
- PRM10-25-47-100-F
- ORIGIN:
- Çin
- Warranty:
- 12 AY
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Xynova-PRM10-25-47-100-F
Xynova PRM10-25-47-100-F Linear Actuator
Five extra millimeters rarely sound important, until a linkage runs out of travel just before a finger fully closes or a joint reaches its full range. The Xynova PRM10-25-47-100-F exists for exactly that problem. It takes the balanced 100 N, 47 mm/s performance of the PRM10 series and stretches the effective stroke to 24 mm, giving designers more room to work without stepping up to a larger actuator. It is the PRM10 to choose when your mechanism needs both a firm push and a longer reach, inside a body that still weighs less than 40 g.
Key Features
24 mm Long Stroke
An effective stroke of 24 mm gives about 26 percent more travel than the 19 mm PRM10 versions. That extra reach can simplify linkage geometry, allow fuller joint rotation, or let a single actuator cover a range that would otherwise need a more complex mechanism.
Balanced Force and Speed
With at least 100 N of thrust, a no load speed of at least 47 mm/s and a full load speed of at least 20 mm/s, this model sits in the middle of the PRM10 range. It is strong enough for secure grips and joint loads, yet quick enough for natural looking motion.
Planetary Roller Screw Transmission
Xynova builds its own 7 mm micro planetary roller screw, which spreads load across many rolling contacts for higher efficiency, load capacity and service life than a conventional lead screw. The company states that the design also supports joint self locking, helping the actuator hold position if power is lost.
In House Motor and Control
A brushless hollow cup motor developed by Xynova provides strong output from a small package, helped by a proprietary winding process that improves thrust density. Control is handled by a decoupled adaptive architecture with AI driven parameter tuning and an in house position encoding method, delivering repeatability of ±0.05 mm.
Xynova PRM10-25-47-100-F Specifications
| Specification | PRM10-25-47-100-F |
|---|---|
| Series | PRM10 micro electric cylinder |
| Effective stroke | 24 mm (+1%) |
| Maximum thrust | ≥100 N |
| No load maximum speed | ≥47 mm/s |
| Full load speed | ≥20 mm/s |
| Size (L x W x H) | 10 x 13.5 x 86 mm |
| Weight | ≤38 g |
| Operating voltage | 12 V DC ±10% |
| Repeatability | ±0.05 mm |
| Static current | 0.05 A |
| No load current | 0.4 A |
| Operating temperature | -15 to 60 °C |
| Drive | Hollow cup motor with 7 mm planetary roller screw |
Long Stroke vs Standard Stroke
| Model | Stroke | Max thrust | No load speed | Length | Weight | Repeatability |
|---|---|---|---|---|---|---|
| PRM10-25-47-100-F | 24 mm | ≥100 N | ≥47 mm/s | 86 mm | ≤38 g | ±0.05 mm |
| PRM10-20-47-100-F | 19 mm | ≥100 N | ≥47 mm/s | 81 mm | ≤34 g | ±0.04 mm |
| PRM10-25-64-75-F | 24 mm | ≥75 N | ≥64 mm/s | 86 mm | ≤38 g | ±0.05 mm |
The trade off is small: 5 mm of extra body length and up to 4 g of extra weight in exchange for 5 mm of extra travel at the same force and speed.
Applications
- Robot fingers with long linkages: extra travel for full flexion in larger or more articulated finger designs.
- Thumb and wrist joints: longer reach for joints that need a wider range of motion.
- Humanoid facial and head mechanisms: compact linear motion where stroke matters more than peak force.
- Grippers and end effectors: wider jaw opening with a firm 100 N closing force.
- Research and prototyping: a versatile middle option while a design is still being refined.
Who Should Buy the PRM10-25-47-100-F?
Buy this model if your mechanism needs more than 19 mm of travel and more than 75 N of force. It suits hand designers, humanoid engineers and gripper builders who want a balanced actuator without redesigning around a larger part. If your design fits within 19 mm, the shorter PRM10-20-47-100-F saves a little length, weight and repeatability.
Which Should You Buy?
| If you need... | Choose |
|---|---|
| 100 N with the longest available stroke | PRM10-25-47-100-F |
| 100 N in the shortest, lightest body | PRM10-20-47-100-F |
| Long stroke with maximum speed | PRM10-25-64-75-F |
| More force on a 19 mm stroke | PRM10-20-34-150-F or PRM10-20-18-200-F |
Before You Buy
- Measure the travel you need: confirm your linkage actually uses more than 19 mm before choosing the long stroke version.
- Check the envelope: allow for the 86 mm body length when packaging inside a finger or forearm.
- Size force with margin: remember that full load speed drops to about 20 mm/s at maximum thrust.
- Plan power: each actuator runs on 12 V DC and draws 0.4 A with no load, so budget current for every unit in the system.
- Quote the full set: multi joint designs often mix stroke and force versions, so include every model and quantity in one quote.
Pricing and Availability
The Xynova PRM10-25-47-100-F is sold by quote. Add it to your quote from this page with the quantity you need, and our team will reply with current price, cost details and lead time. The actuator includes a 12 month warranty, and availability depends on production allocation.
Frequently Asked Questions
What is the stroke of the Xynova PRM10-25-47-100-F?
The PRM10-25-47-100-F has an effective stroke of 24 mm, the longest in the PRM10 series.
How much force does the PRM10-25-47-100-F produce?
It delivers a maximum thrust of at least 100 N.
How fast is the PRM10-25-47-100-F?
Xynova specifies a no load speed of at least 47 mm/s and a full load speed of at least 20 mm/s.
What is the difference between the PRM10-25-47-100-F and PRM10-20-47-100-F?
Both deliver 100 N and 47 mm/s. The 25 version adds 5 mm of stroke (24 mm vs 19 mm) at the cost of 5 mm more length and up to 4 g more weight.
What voltage does the PRM10-25-47-100-F need?
It runs on 12 V DC with a tolerance of ±10%.
How much does the Xynova PRM10-25-47-100-F cost?
Pricing is by quote. Request a quote on this page for current price and cost for your quantity.
Where can I buy the Xynova PRM10-25-47-100-F?
You can buy it right here on this page. Add it to your quote and our team will follow up with pricing and availability.
Summary
The Xynova PRM10-25-47-100-F gives designers the reach of a 24 mm stroke with a dependable 100 N of thrust, all in a 38 g micro cylinder built around a planetary roller screw and an in house hollow cup motor. When your mechanism needs a little more travel without a bigger actuator, this is the PRM10 to buy. Request a quote on this page for current price and availability.
