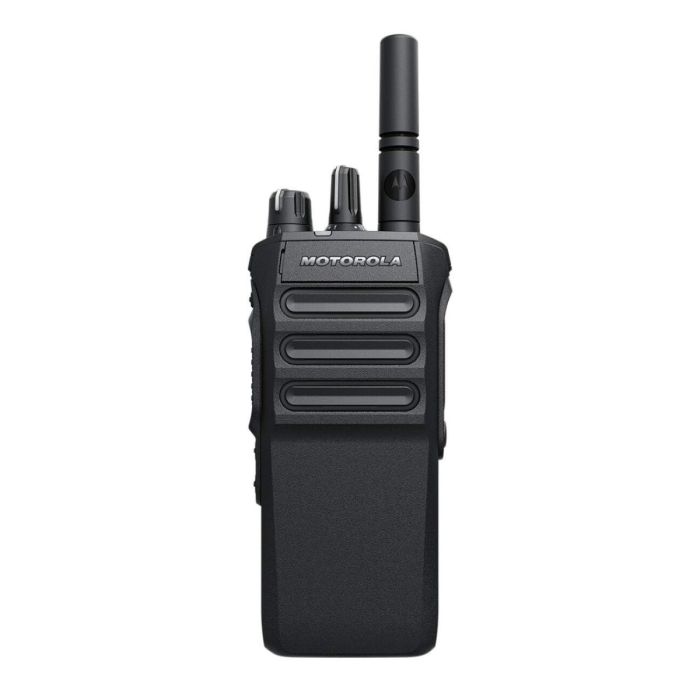

MOTOROLA MOTOTRBO R7 VHF NKP BT WIFI GNSS CAPABLE PRA302CEG (MDH06JDC9WA2AN)

MOTOROLA MOTOTRBO R7 VHF NKP BT WIFI GNSS CAPABLE PRA302CEG (MDH06JDC9WA2AN)

Within the broader R7 lineup, this model belongs to the no-keypad (NKP) class rather than the full-keypad display variant. Motorola’s current R7 datasheet positions the R7 family around advanced audio processing, rugged construction, VHF/UHF/800/900 MHz platform options, Bluetooth 5.2, Wi-Fi 2.4/5.0 GHz, digital and analog signaling, and harsh-environment durability.

For buyers evaluating MDH06JDC9WA2AN, the main appeal is that it combines the R7’s high-end audio and modern wireless capability with a simpler non-keypad operating format. In practice, this makes it suitable for organizations that want a current-generation Motorola radio with strong field durability and connected-radio features, but without the extra complexity of a larger display-and-keypad workflow. That last point is an inference based on Motorola’s exact SKU mapping and the family specifications.

Introduction / Overview

The MOTOTRBO R7 is Motorola Solutions’ premium portable radio platform for users who need dependable communications in noisy, physically demanding, and increasingly software-connected environments. Motorola describes the R7 as a rugged, dependable, and connected device with game-changing audio capabilities, emphasizing that its advanced audio processing is designed to keep communications loud and clear even in difficult conditions.

The exact model MDH06JDC9WA2AN is a VHF R7 configuration. Motorola’s current North America datasheet lists the VHF R7 band as 136–174 MHz, and for the R7 no-keypad model, it lists 5 W high power output, 64 channels, and no display. Those family-level specifications align with the SKU’s VHF/NKP/capable identity shown in Motorola’s documentation portal.

This exact radio is therefore best understood as a VHF, non-keypad, connected-capable R7 intended for users who need voice clarity, ruggedness, and modern wireless options more than they need a screen-heavy interface. That makes it well suited to organizations modernizing radio fleets while keeping day-to-day operation straightforward. This deployment framing is an inference based on the published model mapping and family datasheet.

Design and Features

Non-Keypad Operational Simplicity

A defining trait of the MDH06JDC9WA2AN is its place in the R7 no-keypad model class. Motorola’s R7 datasheet explicitly separates the family into FULL KEYPAD MODEL (FKP) and NO KEYPAD MODEL (NKP) versions, with the NKP version listed as having no display and 64 channels.

That design choice matters for real-world deployments. A non-keypad radio is often preferred where users need fast push-to-talk access, simple training, reduced front-panel complexity, and fewer opportunities for accidental misconfiguration. This usability advantage is an inference from the published NKP format and how such models are typically deployed.

Advanced Audio Processing

Motorola’s strongest emphasis for the R7 platform is audio. The current North America datasheet lists Adaptive Dual Microphone Noise Cancellation, Automatic Acoustic Feedback Suppression, AI-trained Noise Suppression, Intelligent Audio, wideband speaker and microphones, and programmable loudness up to 107 phons.

These features are important because many radio problems in the field are really intelligibility problems, not coverage problems. A radio can receive a signal and still fail operationally if users cannot understand each other in machinery noise, traffic noise, wind, or reverberant buildings. Motorola’s published R7 audio stack is intended to address that issue directly. This is an inference based on the listed audio features and Motorola’s product positioning.

Rugged Construction

Motorola lists the R7 as IP68 waterproof up to 2 meters for 2 hours, IP66 for concentrated water-jet pressure, and rugged to MIL-STD 810. Motorola also notes disinfectant and decontamination substance resistant housing and a robust, corrosion-proof side connector.

Those characteristics make the radio relevant for wet, dusty, and high-contact environments, including field operations, transport yards, industrial plants, healthcare-adjacent deployments, and security teams working in mixed indoor/outdoor conditions. The specific deployment examples are an inference, but they are grounded in Motorola’s ruggedness claims.

Bluetooth, Wi-Fi, and GNSS Capability

Motorola’s SKU mapping for MDH06JDC9WA2AN explicitly includes BT, Wi-Fi, and GNSS capability, and the R7 datasheet lists Bluetooth Core Version 5.2, Wi-Fi 2.4/5.0 GHz, and WPA3 Wi-Fi security protocol compliance. GNSS specifications in the datasheet list support for GPS, GLONASS, BEIDOU, and GALILEO.

These features matter because many modern radio fleets now depend on wireless accessories, software integration, secure Wi-Fi workflows, and location-aware operations, not just voice. Motorola’s broader R7 ecosystem also includes accessories and integration pathways that reinforce that future-ready positioning.

Technology and Specifications

Exact Model Identity

Motorola’s documentation portal identifies MDH06JDC9WA2AN as MOTOTRBO R7, BT, Wi-Fi, compatible con GNSS, PRA302CEG. This is the clearest public source for the exact SKU-to-feature mapping.

Frequency Range and Power

For the R7 no-keypad model, Motorola’s current datasheet lists:

• VHF frequency range: 136–174 MHz
• High power output: 5 W
• Low power output: 1 W
• Channel spacing: 12.5 kHz, 20 kHz, 25 kHz
• Channel capacity: 64 channels

These figures define the practical operating profile of this exact model as a VHF, professional-grade handheld designed for conventional and DMR-type fleet use.

Battery Life and Physical Characteristics

Motorola publishes several battery profiles for the R7 NKP family. For the 2200 mAh slim IMPRES Li-Ion battery, the VHF NKP model is listed at 20 hours digital / 15 hours analog. For the 2850 mAh IMPRES Li-Ion battery, it is listed at 26 hours digital / 19.5 hours analog. For the 3200 mAh IMPRES Li-Ion battery, it is listed at 29 hours digital / 22 hours analog.

With the 2200 mAh slim battery, the NKP model is listed at 131.8 x 56 x 31.3 mm and 289 g. With the 2850 mAh battery, it is 306 g, and with the 3200 mAh battery, 339 g.

Radio Performance

Motorola’s R7 datasheet lists these family-level RF performance figures:

• Analog sensitivity (12 dB SINAD): 0.16 μV
• Digital sensitivity (5% BER): 0.14 μV
• Intermodulation: 70 dB
• Spurious rejection: 70 dB
• Frequency stability: ± 0.5 ppm

These figures place the R7 in the class of serious professional radios built for reliable performance in crowded RF environments.

GNSS and Wi-Fi Specifications

Motorola’s datasheet lists GNSS support for GPS, GLONASS, BEIDOU, and GALILEO, with time to first fix (cold start) ≤ 60 seconds, hot start ≤ 10 seconds, and horizontal accuracy < 5 meters. It also lists Wi-Fi support in the 2.4 GHz and 5 GHz bands.

Additional Platform Capabilities

Motorola’s R7 datasheet also lists digital and analog signaling, WAVE PTX Backup Client with Seamless Voice Handover, and a full suite of accessories for the platform. Whether every software-driven workflow is deployed on a particular radio depends on configuration and licensing, but these are published capabilities of the family.

Applications and Use Cases

Utilities, Field Services, and Outdoor Operations

Because MDH06JDC9WA2AN is a VHF model, it is especially relevant for organizations operating across wider outdoor areas, where VHF is often favored. Utilities, field maintenance, construction support, and agriculture are logical fits. These sector examples are inferences, but they are grounded in the radio’s VHF identity and rugged design.

Transportation and Logistics

The radio’s combination of rugged sealing, 5 W VHF output, GNSS capability, and modern wireless features makes it well suited to transport yards, fleet coordination, depots, and moving teams that need reliable handheld communications across larger outdoor or mixed environments. This use-case framing is an inference supported by the listed specifications.

Industrial and Campus Operations

Although VHF is often associated with outdoor use, the R7’s audio strengths and durable construction also make it suitable for industrial plants, campuses, and facilities teams where users need to hear and be heard in loud environments and still benefit from simpler radio operation.

Enterprise Fleet Modernization

This model is also a strong candidate for organizations replacing older analog or less-connected portables with a current-generation Motorola platform while preserving straightforward user experience. That is an inference based on the model’s non-keypad format and family-level connectivity.

Advantages / Benefits

Strong Audio in Challenging Environments

The R7’s biggest advantage is Motorola’s advanced audio processing, including adaptive dual microphone noise cancellation, AI-trained noise suppression, and automatic acoustic feedback suppression. In practical terms, that means clearer communications where background noise would otherwise make radios hard to use.

Modern Connectivity in a Simpler Format

Because this SKU is BT/Wi-Fi/GNSS capable while still being NKP, it offers a useful middle ground between basic radios and more interface-heavy premium portables. That balance is one of the strongest reasons to choose this exact variant.

Rugged, Future-Ready Platform

Motorola’s IP66/IP68, MIL-STD 810, and WPA3 Wi-Fi security claims show that the radio is built not only for physical durability but also for current enterprise deployment expectations.

Broad Battery-Life Options

With published NKP battery-life figures ranging from 15 hours analog with the slim battery to 22 hours analog and 29 hours digital with the 3200 mAh battery, the R7 offers flexibility for different shift lengths and deployment needs.

FAQ Section

What is the MOTOROLA MOTOTRBO R7 VHF NKP BT WiFi GNSS Capable PRA302CEG (MDH06JDC9WA2AN)?

It is an exact Motorola MOTOTRBO R7 VHF portable radio configuration identified by Motorola as Bluetooth-, Wi-Fi-, and GNSS-capable under the PRA302CEG package designation.

How does the Motorola MDH06JDC9WA2AN work?

It operates as a professional portable two-way radio in the VHF 136–174 MHz range, using the R7 platform’s advanced audio processing and supporting modern workflows through Bluetooth, Wi-Fi, and GNSS-capable hardware.

Why is the Motorola R7 MDH06JDC9WA2AN important?

It is important because it combines rugged construction, strong audio clarity, and modern wireless capability in a non-keypad format that is easier to deploy for many field users.

What are the benefits of the Motorola MOTOTRBO R7 VHF capable model?

Its main benefits are advanced audio processing, Bluetooth 5.2, Wi-Fi 2.4/5.0 GHz, GNSS capability, VHF 5 W output, and IP66/IP68 ruggedness.

Is MDH06JDC9WA2AN a premium R7 model?

Motorola’s SKU mapping identifies it as a capable model, not the nearby premium model listed in the same documentation results.

What frequency does the Motorola MDH06JDC9WA2AN use?

It is a VHF R7 model, and Motorola’s current R7 datasheet lists the VHF R7 band as 136–174 MHz.

Summary

The MOTOROLA MOTOTRBO R7 VHF NKP BT WiFi GNSS Capable PRA302CEG (MDH06JDC9WA2AN) is a current-generation Motorola VHF professional radio that combines rugged construction, advanced audio, and modern wireless capability in a simpler non-keypad format. For organizations that want a durable VHF R7 platform with Bluetooth, Wi-Fi, and GNSS capability but do not need a premium keypad variant, it stands out as a practical and future-ready option.
