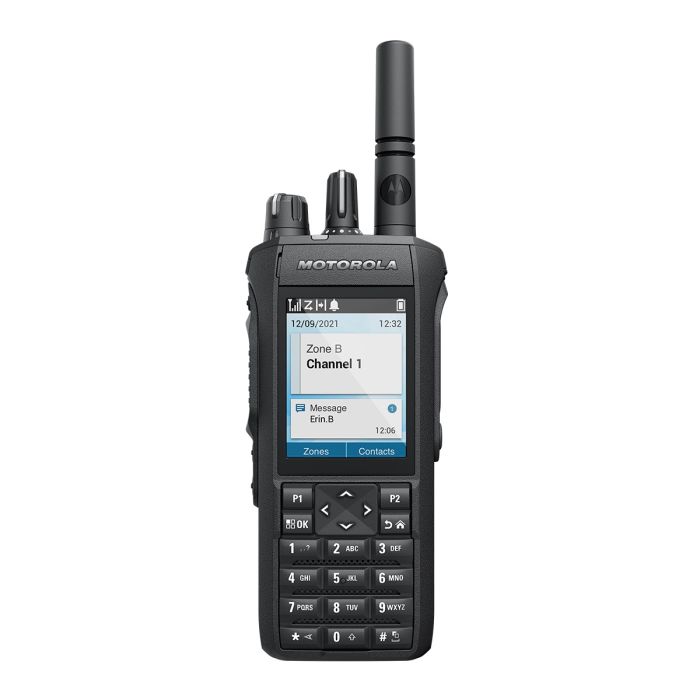

MOTOROLA MOTOTRBO R7 UHF TIA FKP BT WIFI GNSS CAPABLE PRA502HEG (MDH06RDN9WA1AN)

The exact part number MDH06RDN9WA1AN is shown by current reseller listings as the UHF TIA full-keypad capable variant with Bluetooth, Wi-Fi, and GNSS, tied to the PRA502HEG platform designation. Those listings distinguish it from the premium tier, which indicates that this is a Capable model rather than a Premium one.

A core part of this model’s identity is the TIA designation. Motorola’s official R7 data sheet states that the R7 family includes an intrinsically safe option (UL TIA-4950), and the same sheet specifies ANSI/TIA 4950 and CAN/CSA C22.2 No. 157-92 hazardous-location certification when the radio is properly equipped with a Motorola UL-approved battery.

Design and Features

Full-Keypad Capable Configuration

This requested radio is a full-keypad (FKP) configuration. Motorola’s R7 data sheet states that full-keypad models use a 2.4-inch 320 x 240 px QVGA display, while reseller listings for MDH06RDN9WA1AN explicitly identify it as FKP and Capable. That places it above no-keypad versions for users who need screen-based interaction and greater menu access, while still sitting below Premium in channel-tier naming.

Advanced Audio Processing

Motorola makes audio the defining feature of the R7 family. Official specifications list Automatic Acoustic Feedback Suppression, Adaptive Dual Microphone Noise Cancellation, AI-trained Noise Suppression, and Intelligent Audio, and Motorola says the R7 is designed so users can hear and be heard clearly in harsh environments.

Wireless Connectivity and GNSS

The requested model name includes BT WIFI GNSS, and that aligns with Motorola’s published family capabilities. Motorola’s official data sheet lists Bluetooth 5.2, Wi-Fi 2.4/5.0 GHz, WPA3/WPA2 security support, and GNSS support for GPS, GLONASS, BEIDOU, and GALILEO. Reseller pages for MDH06RDN9WA1AN also explicitly include GNSS in the product name.

Rugged Enterprise Construction

Motorola’s official data sheet lists IP68, IP66, and MIL-STD 810 for the R7 family. Motorola also highlights disinfectant- and decontamination-resistant housing and a robust side connector, reinforcing that the platform is intended for demanding professional use.

Technology and Specifications

Frequency Band and Power

Motorola’s official North America R7 data sheet lists UHF full-keypad models at 400–527 MHz with 4W high power output and 1W low power output. That is the strongest technical source for the UHF R7 full-keypad platform and should be treated as the source of truth for the radio family’s UHF band and power.

One reseller listing for MDH06RDN9WA1AN uses a broader UHF category label in its product title page structure, but Motorola’s official data sheet is more precise and authoritative on the actual R7 full-keypad UHF range. This is why the best-supported specification for this model is UHF 400–527 MHz and 4W high power.

Channel Capacity and Display

Motorola’s official R7 data sheet lists 1,000 channels for full-keypad models and 64 channels for no-keypad models. It also lists the full-keypad display as a 2.4-inch 320 x 240 px QVGA display, with up to 10 lines of text. These details are important because they distinguish the requested radio from the simpler R7 NKP configurations.

Battery, Dimensions, and Weight

Motorola provides family-level physical specifications for the full-keypad R7. With the 2200 mAh slim IMPRES battery, the full-keypad radio measures 131.8 x 56 x 34.7 mm and weighs 316 g. With the 2850 mAh IMPRES battery, it weighs 333 g, and with the 3200 mAh IMPRES or 3200 mAh HAZLOC battery, it weighs 366 g. Motorola lists battery life up to 28 hours as a key family feature and provides model-specific digital/analog battery-life figures in the detailed table.

Intrinsically Safe / TIA Context

Motorola’s official R7 data sheet says the R7 family offers an intrinsically safe option (UL TIA-4950) and further specifies ANSI/TIA 4950 and CAN/CSA C22.2 No. 157-92 certification for properly equipped radios using Motorola UL-approved batteries. This is the strongest official basis for describing the requested model as a TIA radio within a hazardous-location-capable product family.

Signaling and Platform Capabilities

Motorola’s official data sheet lists digital and analog signaling, DMR Tier II and DMR Tier III, and WAVE PTX Backup Client with Seamless Voice Handover among the R7 family’s platform capabilities. That makes the R7 more than a conventional handheld voice radio; it is positioned as part of a broader modern communications ecosystem.

Applications and Use Cases

The R7 family is designed for professional communications in demanding workplaces. Motorola’s official materials emphasize harsh-environment readiness, advanced audio processing, and modern connectivity, which makes MDH06RDN9WA1AN relevant for manufacturing, warehousing, transportation, utilities, facilities, security, hospitality, and education. The sector examples are an inference based on Motorola’s product positioning and the radio’s specification set.

Because this exact model is UHF, it is especially suitable where UHF is preferred for on-site coverage and stronger performance in built environments. That can include industrial sites, campuses, warehouses, and dense facilities. This is an inference from the UHF band and common radio-planning practice, not a Motorola vertical-specific claim for this exact SKU.

The TIA aspect also makes this model relevant where organizations need a radio that fits into a UL TIA-4950 intrinsically safe deployment path. Motorola’s official data sheet supports the hazardous-location-capable configuration path for the R7 family, while reseller listings identify this exact SKU as a TIA full-keypad model.

Advantages / Benefits

One of the biggest advantages of the R7 family is audio clarity. Motorola’s official literature repeatedly highlights AI-trained noise suppression, dual-microphone noise cancellation, and acoustic feedback suppression. In real deployments, intelligibility is often the most important factor in radio performance.

Another advantage is modern wireless capability. Bluetooth 5.2, Wi-Fi 5, GNSS support, and current Wi-Fi security protocols make this model more versatile than many older-generation radios, especially for organizations using wireless accessories, over-the-air workflows, or location-aware operations.

A third advantage is rugged, future-ready deployment. Motorola combines IP68/IP66, MIL-STD 810, digital/analog signaling, and an intrinsically safe option in the same family. That makes the R7 a strong candidate for long-term fleet standardization.

For this exact model, the Capable designation is also significant. Reseller listings distinguish it from the Premium tier, which suggests a middle position for buyers who want full-keypad access and core wireless features without moving to the premium SKU. That distinction comes from reseller segmentation rather than a Motorola feature matrix comparing Capable and Premium line by line.

FAQ Section

What is the MOTOROLA MOTOTRBO R7 UHF TIA FKP BT WIFI GNSS CAPABLE PRA502HEG (MDH06RDN9WA1AN)?

It is a UHF full-keypad Motorola MOTOTRBO R7 radio sold as a TIA capable model with Bluetooth, Wi-Fi, and GNSS. Motorola’s official family documentation supports the R7 platform features, and reseller listings identify this exact SKU as the Capable UHF TIA full-keypad variant.

How does the Motorola MOTOTRBO R7 work?

The R7 works as a professional digital portable two-way radio with support for digital and analog signaling. Motorola says it combines rugged construction, advanced audio processing, wireless connectivity, and a modern user experience to deliver clearer communications in demanding environments.

Why is the Motorola MOTOTRBO R7 important?

It is important because it combines advanced audio performance, rugged enterprise durability, and modern wireless connectivity in one radio platform. Motorola’s product positioning centers the R7 on helping users hear and be heard clearly in harsh workplaces.

What are the benefits of the Motorola MOTOTRBO R7 capable TIA model?

Its main benefits are full-keypad operation, Bluetooth 5.2, dual-band Wi-Fi, GNSS support, advanced noise suppression, IP68/IP66 durability, and access to the R7 family’s UL TIA-4950 intrinsically safe option.

Is the Motorola MOTOTRBO R7 rugged?

Yes. Motorola’s official data sheet lists IP68, IP66, and MIL-STD 810 credentials for the R7 family.

Does the MDH06RDN9WA1AN include GNSS?

Yes. The reseller listing for MDH06RDN9WA1AN explicitly includes GNSS in the model description, and Motorola’s official R7 family data sheet includes GNSS specifications for supported models.

Summary

The MOTOROLA MOTOTRBO R7 UHF TIA FKP BT WIFI GNSS CAPABLE PRA502HEG (MDH06RDN9WA1AN) is a feature-rich professional handheld that combines UHF 400–527 MHz operation, full-keypad access, Bluetooth, Wi-Fi, GNSS, and the broader R7 family’s advanced audio and rugged design. Motorola’s official R7 documentation establishes the family’s strengths with Bluetooth 5.2, dual-band Wi-Fi, IP68/IP66 durability, AI-based audio technologies, and an intrinsically safe option under UL TIA-4950, while reseller listings identify the exact requested part number as the Capable TIA UHF full-keypad variant. For buyers searching for a Motorola R7 UHF TIA radio, MDH06RDN9WA1AN, or a full-keypad MOTOTRBO handheld with Bluetooth and Wi-Fi, this model stands out as a capable, safety-oriented, and future-ready radio choice.
