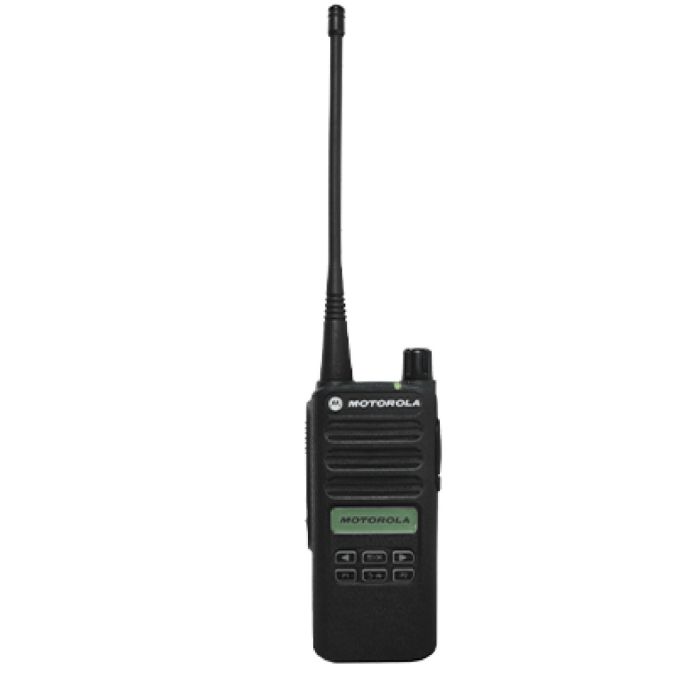

Motorola CP100d-UD Commercial Portable Two-Way Radio (AAH87YDH9JA2AN)
he exact AAH87YDH9JA2AN model is widely listed by dealers as the CP100d-UD, a UHF 403–470 MHz handheld with a display, limited keypad, 160 channels, and 4 watts of output. Dealer listings for this exact part number also describe it as an analog/digital radio, which matches Motorola’s broader CP100d platform positioning as a mixed-mode business radio for gradual system upgrades.
For buyers searching phrases such as Motorola CP100d-UD, AAH87YDH9JA2AN, Motorola UHF display radio, or MOTOTRBO CP100d limited keypad portable, this model stands out because it offers more usability than non-display CP100d variants while remaining simpler and more affordable than higher-tier Motorola portables. Motorola’s CP100d Series data sheet states that the display versions support up to 160 channels, and dealer listings for this exact radio consistently present it as the UHF display limited-keypad version.
The MOTOTRBO CP100d Series is designed for professional users who need reliable communications without immediately moving into a more advanced or more expensive radio tier. Motorola says the series delivers the benefits of digital technology, including up to 35% longer talk time, twice the voice capacity in a 12.5 kHz licensed channel, wider radio coverage, and superior audio, while also supporting analog operation where needed.
Within that family, the CP100d-UD is the UHF display / limited keypad version. Motorola’s official CP100d Series data sheet shows that display versions are available with limited keypad and full keypad layouts and support 160 channels. Dealer listings for AAH87YDH9JA2AN consistently describe the exact model as 403–470 MHz, 4 watts, 160 channels, and analog/digital, which lines up closely with the official family specification.
This positioning makes the CP100d-UD especially relevant to businesses that need more than a basic no-display radio but do not need the cost or complexity of a premium-tier portable. It is well suited to users who benefit from a screen and limited keypad for faster navigation, channel awareness, and feature access while still keeping the radio straightforward to deploy. That interpretation follows from Motorola’s documented family structure and the exact-model reseller descriptions.
Design and Features
Display and Limited Keypad Layout
The defining feature of the CP100d-UD is its display and limited keypad configuration. Motorola’s official CP100d data sheet states that the series includes monochrome display versions with limited keypad and full keypad layouts, and dealer listings for AAH87YDH9JA2AN specifically identify it as the UHF display limited-keypad version.
A limited keypad gives users more direct control than a non-display radio while avoiding the extra complexity of a full keypad. In practical terms, that makes the radio useful for supervisors, facilities teams, venue staff, security personnel, and other users who need more than simple push-to-talk and channel selection. This is an inference based on the CP100d family’s published keypad tiers and the exact-model descriptions.
Analog and Digital Operation
One of the CP100d platform’s biggest strengths is its support for both analog and digital voice communications. Motorola’s official CP100d materials explicitly say the radios can operate in analog and digital modes, allowing businesses to adapt new digital radios alongside existing analog systems and migrate at their own pace. Dealer listings for AAH87YDH9JA2AN also describe it as an analog/digital model.
That makes the CP100d-UD especially attractive for organizations modernizing older fleets. A company can deploy the radio now in mixed or analog environments and later expand its digital usage as infrastructure and budget evolve. This conclusion follows directly from Motorola’s migration messaging.
Voice Announcement and Platform Features
Motorola’s CP100d Series data sheet lists Voice Announcement, Pre-Programmed Text Messaging, Dual Capacity Direct Mode, and Transmit Interrupt (decode only) among family features, with some capabilities dependent on digital mode. These details show that the CP100d family is more than a basic entry-level analog radio line.
Rugged Commercial Construction
Motorola states that the CP100d Series meets IP54 requirements for dust and water resistance and complies with U.S. Military Standard 810C, D, E, F, and G. Motorola also says the radios passed Accelerated Life Testing designed to simulate years of use, including drop, vibration, humidity, dust, temperature shock, and electrostatic discharge testing.
These durability credentials make the CP100d-UD suitable for real commercial environments rather than only office or low-demand indoor use. It is clearly intended for hospitality back-of-house work, facilities, grounds operations, construction support, warehouses, and other practical field settings. That last sentence is an inference based on Motorola’s durability claims and the sectors highlighted in Motorola and dealer materials.
Technology and Specifications
Core Technical Specifications
Motorola’s official CP100d Series data sheet lists the following platform-level specifications for the UHF Band 1 display models:
- Frequency range: 403–480 MHz
- High power: 4 W
- Low power: 1 W
- Channel spacing: 12.5 / 25 kHz
- Nominal voltage: 7.5V
- Display versions: up to 160 channels.
Dealer listings for AAH87YDH9JA2AN match that profile and identify the exact radio as UHF 403–470 MHz, 4 watts, 160 channels, display, and limited keypad.
Dimensions and Weight
Motorola’s CP100d Series data sheet lists the display UHF model at approximately:
- 120.0 x 55.0 x 36.5 mm with the 1700 mAh battery
- 295 g with the 1700 mAh battery
- 120.0 x 55.0 x 40.6 mm with the 2250 mAh battery
- 300 g with the 2250 mAh battery.
These measurements place the CP100d-UD in the familiar business-portable class: compact enough for routine belt carry, yet large enough to support a usable screen, keypad, and full-shift battery options.
Battery Life
Motorola provides the following average battery-life figures for CP100d display models at a 5/5/90 duty cycle:
- 1700 mAh Li-Ion battery: 9.6 hours analog / 12.6 hours digital for UHF
- 2250 mAh high-capacity Li-Ion battery: 13.6 hours analog / 18.0 hours digital for UHF.
These figures reinforce Motorola’s claim that digital operation improves efficiency. They also suggest the CP100d-UD can comfortably support a typical work shift, especially with the higher-capacity battery or in digital mode.
Receiver and Audio Performance
Motorola lists the CP100d Series with analog sensitivity of 0.3 µV / 0.22 µV typical and digital sensitivity of 0.25 µV / 0.19 µV typical. Internal rated audio is listed at 0.5 W, with 5% maximum distortion and 3% typical.
These are typical commercial-portable-radio figures aimed at clear everyday voice communications rather than specialized extreme-audio use.
Applications and Use Cases
Motorola’s official CP100d data sheet points to environments such as guest rooms, event locations, hotel operations, and busy factory floors as appropriate for the series. That positioning makes the CP100d-UD especially relevant to organizations that want a display-equipped UHF handheld for indoor-heavy or mixed commercial environments.
Hospitality and Property Operations
Motorola describes how housekeepers and supervisors can use the CP100d Series to communicate across hotel floors and guest spaces. In that environment, the UHF band and display limited-keypad format are especially useful for engineering teams, security staff, and supervisors who need better coverage around buildings and more visibility than a non-display portable provides. The building-coverage point is an inference based on standard UHF use and the radio’s band.
Events and Venue Coordination
Motorola also highlights event operations, where radios support quicker updates and faster security response. A display-equipped UHF handheld like the CP100d-UD is well suited to venue managers, guest-services teams, and operations staff working across multi-room or multi-floor environments. This use case follows from Motorola’s event examples and the UHF indoor-oriented band.
Warehouses, Campuses, and Multi-Building Sites
UHF radios are commonly chosen for more built-up or indoor-heavy environments, and dealer listings for AAH87YDH9JA2AN describe the radio as appropriate for business and commercial use. That makes the CP100d-UD a strong fit for warehouses, campuses, schools, retail sites, maintenance departments, and property operations where teams work in and around structures. This is an inference from the band and dealer positioning.
Analog-to-Digital Migration Projects
One of the most important roles for the CP100d-UD is modernization. Motorola explicitly presents the CP100d family as a platform for businesses that want to communicate now and migrate to digital as needed. This makes the radio especially useful in staged upgrade projects where some users or sites still rely on analog infrastructure.
Advantages / Benefits
Affordable Path to Digital
Motorola’s core value proposition for the CP100d family is migration. The CP100d-UD lets businesses use analog and digital modes, which lowers the cost and disruption of upgrading from legacy systems.
Display and Limited Keypad Usability
Compared with non-display versions, the CP100d-UD provides more direct access to channels, menus, and status information. That makes it more practical for users who need some interface visibility without moving to a full-keypad radio.
UHF Coverage for Built Environments
Its 403–470 MHz UHF band makes it especially appropriate for many indoor-heavy and structure-dense commercial settings. This benefit follows standard UHF radio-planning logic and is consistent with the kinds of businesses dealers describe for the model.
Proven Durability
IP54 protection, MIL-STD references, and Motorola’s accelerated life testing support use in demanding commercial environments.
Better Runtime in Digital Mode
Motorola’s official battery figures show a clear improvement in runtime when the radio is used in digital mode.
FAQ Section
What is the Motorola CP100d-UD Commercial Portable Two-Way Radio?
The Motorola CP100d-UD (AAH87YDH9JA2AN) is a UHF display limited-keypad commercial portable radio in the MOTOTRBO CP100d Series. Dealer listings identify it as a 403–470 MHz, 4-watt, 160-channel analog/digital radio.
How does the Motorola CP100d-UD work?
It works as a handheld two-way radio over programmed UHF channels. Motorola says the CP100d platform supports both analog and digital voice communications, allowing use in current analog fleets and in digital MOTOTRBO environments.
Why is the Motorola CP100d-UD important?
It is important because it combines display-based usability, commercial durability, and a cost-effective path from analog to digital communications in a single handheld platform.
What are the benefits of the Motorola CP100d-UD?
Its main benefits are UHF 403–470 MHz coverage, display and limited keypad control, 160-channel capacity, IP54 durability, and analog/digital flexibility within the MOTOTRBO ecosystem.
Is the Motorola CP100d-UD analog or digital?
It is both. Motorola’s official CP100d data sheet states that the series supports analog and digital voice communications, and dealers listing AAH87YDH9JA2AN describe it as an analog/digital model.
Summary
The Motorola CP100d-UD Commercial Portable Two-Way Radio (AAH87YDH9JA2AN) is a practical UHF 403–470 MHz, 4-watt, 160-channel handheld built for business users who need more flexibility than a basic non-display portable but less complexity than a premium-tier radio. With its display and limited keypad, analog/digital operation, IP54 durability, and Motorola’s documented migration path to digital communications, it is well suited to hospitality, retail, facilities, warehouses, schools, and other commercial environments where indoor-friendly UHF performance matters. For buyers seeking a Motorola CP100d UHF display radio, the CP100d-UD is one of the clearest options in the entry-level MOTOTRBO lineup.
