Motorola CP100d-VF Commercial Portable Two-Way Radio (AAH87JDF9JA2AN)

Motorola CP100d-VF Commercial Portable Two-Way Radio (AAH87JDF9JA2AN)

The exact AAH87JDF9JA2AN configuration is widely listed by dealers as the CP100d-VF, a 136–174 MHz VHF model with a full keypad display, 16 channels, 2 programmable side buttons, and an LED battery indicator. Dealer listings for this precise part number consistently identify it as a commercial portable two-way radio in the CP100d family.

Within the broader CP100d range, Motorola positions the series as an entry-level digital radio platform for professionals who want clearer audio, better efficiency, and lower operating costs than legacy analog-only systems, without moving immediately to a more expensive radio class. Motorola also states that CP100d radios can operate in analog and digital modes, and that analog-only versions can later unlock digital capabilities through software upgrade.

For buyers searching phrases such as Motorola CP100d-VF, AAH87JDF9JA2AN, Motorola VHF full keypad radio, or MOTOTRBO CP100d display portable, this model is especially relevant because it combines the familiarity of a handheld commercial radio with the added usability of a display and full keypad, making it more versatile than non-display CP100d variants.

Introduction / Overview

The CP100d Series is designed around a simple idea: give businesses a dependable portable radio that is affordable, practical, and ready for a gradual transition into digital two-way communications. Motorola’s official data sheet says the series is aimed at users who value ease and efficiency, and it explicitly highlights the line’s ability to support both analog and digital voice communications.

Motorola offers the CP100d in several physical formats. According to the official specification sheet, the family includes a non-display version with 16 channels, and monochrome display versions with limited keypad and full keypad layouts supporting 160 channels at the family level.

The exact CP100d-VF product, however, is sold by multiple dealers as a VHF full keypad display radio with 16 channels. Because this differs from Motorola’s broader family specification, the safest conclusion is that AAH87JDF9JA2AN is a dealer-defined package or programmed configuration of the full-keypad VHF model rather than a different CP100d platform. That interpretation is supported by the fact that dealers consistently use the same exact part number and same same feature summary.

Motorola also emphasizes that the CP100d Series is useful in environments such as guest rooms, event locations, hotels, and light manufacturing premises, showing that the line is intended for real business operations rather than hobby or consumer use.

Design and Features

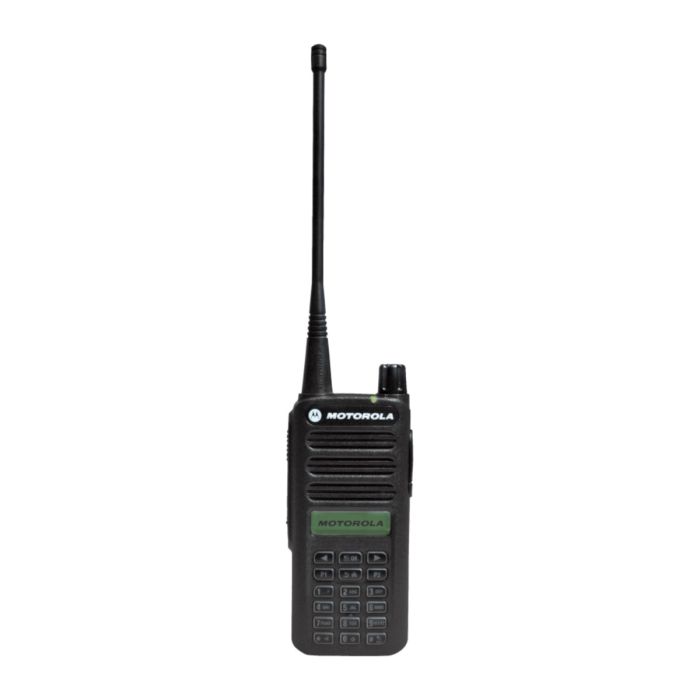

Full Keypad Display Format

The main distinction of the CP100d-VF is its full keypad display layout. Dealer listings for AAH87JDF9JA2AN consistently describe it as a full keypad display VHF unit, which makes it more flexible for users who need menu navigation, contact or channel access, and more direct control than a non-display radio can offer.

This format is valuable in organizations where supervisors, security teams, facilities staff, and event personnel may need faster access to channels, text-related functions, or radio features without depending only on side buttons and voice prompts.

Analog and Digital Voice Communications

Motorola’s official CP100d data sheet lists Analog / Digital Voice Communications among the core features of the platform. The company also says the CP100d Series supports Dual Capacity Direct Mode, Transmit Interrupt (decode only), Pre-Programmed Text Messaging, Voice Announcement, and Digital Mobile Radio (DMR) standards compliance, with some features available only in digital mode.

That matters because the CP100d-VF is not just a basic analog handheld. It belongs to a family that can support digital migration and, in the broader series, can deliver clearer audio and greater efficiency when deployed in digital mode. Motorola specifically states that the series provides up to 35% longer talk time and twice the calling capacity in digital operation compared with analog usage on one frequency license.

Voice Announcement and Programmable Buttons

Motorola says the CP100d Series includes Voice Announcement, which provides audible confirmation of channel changes and programmable button actions. This is useful for workers who cannot safely or conveniently keep looking at the radio display. Dealer listings for the CP100d-VF also mention 2 programmable side buttons, reinforcing its role as a customizable business radio.

Rugged Construction

Motorola rates the CP100d Series IP54 for dust and water resistance and states that it meets U.S. Military Standard 810C, D, E, F, and G. The company also says the radios passed Accelerated Life Testing simulating five years of hard use, including drop, temperature shock, vibration, dust, ESD, and humidity testing.

That makes the CP100d-VF appropriate for daily field and building operations where commercial radios are exposed to routine rough handling rather than only desk use.

Technology and Specifications

Core Specifications

Motorola’s official CP100d Series data sheet lists the following VHF platform specifications for CP100d display and full-keypad radios:

• Frequency range: 136–174 MHz
• Low power: 1 W
• High power: 5 W
• Channel spacing: 12.5 kHz / 25 kHz
• Power supply: 7.5V nominal

Dealer listings for AAH87JDF9JA2AN align with the VHF classification and confirm the exact model as CP100d-VF, 136–174 MHz, full keypad display, and 16 channels.

Dimensions and Weight

For full keypad CP100d VHF radios, Motorola lists the following dimensions and weights with battery:

• With 1700 mAh Li-Ion battery: 4.7 x 2.2 x 1.4 in (120.0 x 55.0 x 36.5 mm), 10.4 oz (295 g)
• With 2250 mAh high-capacity Li-Ion battery: 4.7 x 2.2 x 1.6 in (120.0 x 55.0 x 40.6 mm), 10.6 oz (300 g)

Battery Life

Motorola’s official data sheet states average battery life at a 5/5/90 duty cycle:

• 1700 mAh Li-Ion: 10.7 hours analog / 14.4 hours digital
• 2250 mAh high-capacity Li-Ion: 15.0 hours analog / 20.0 hours digital

These figures show one of the advantages of digital deployment within the CP100d family: better runtime while keeping the same basic radio platform.

Receiver and Audio

Motorola lists the following receiver characteristics for the CP100d Series:

• Analog sensitivity: 0.3 µV / 0.22 µV typical
• Digital sensitivity: 0.25 µV / 0.19 µV typical
• Rated internal audio: 0.5 W
• Audio distortion: 5% max, 3% typical

The company also states that digital voice processing and enhanced call signaling deliver faster and more reliable calls and improved clarity throughout the coverage area.

Applications and Use Cases

Motorola itself points to hotels, event locations, light manufacturing, and security response as fitting environments for the CP100d Series. In those settings, the CP100d-VF is especially useful when users need the added control of a display and keypad rather than a simpler channel-only handset.

Hospitality and Property Operations

Motorola says housekeepers and supervisors can use CP100d radios to communicate across hotel floors and guest-room environments. A full-keypad VHF model can be particularly helpful for supervisors and lead staff who need quicker access to functions or channels.

Event and Venue Staff

The company also highlights event operations, where CP100d radios support faster updates and quicker security response. The CP100d-VF’s keypad and display can help venue coordinators and team leads manage more complex communications.

Light Manufacturing and Facilities

Motorola notes that assembly-line workers can rely on CP100d digital audio to filter out background noise in busy factories. The ruggedness, MIL-STD references, and IP54 rating make the radio suitable for facilities, maintenance, and light industrial use.

Organizations Migrating from Analog

Because Motorola emphasizes easy migration from analog to digital, the CP100d-VF is also a good fit for organizations that want a future-ready handheld without forcing an immediate full-system replacement.

Advantages / Benefits

Straightforward Migration Path

Motorola’s strongest value proposition for the CP100d Series is its migration path. Users can work in analog today and transition into digital at their own pace.

Full Keypad Flexibility

The CP100d-VF adds a display and full keypad, making it more capable than non-display versions for users who need more direct access to radio controls and features.

Commercial Durability

IP54 sealing, MIL-STD compliance references, and Motorola’s accelerated life testing give the radio a strong durability profile for business use.

Better Digital Efficiency

Motorola says digital operation can provide twice the calling capacity and longer battery runtime, which improves value for businesses that upgrade over time.

Practical Audio and Voice Guidance

Features such as Voice Announcement and digital voice clarity make the platform easier to use in busy environments.

FAQ Section

What is the Motorola CP100d-VF Commercial Portable Two-Way Radio?

The Motorola CP100d-VF (AAH87JDF9JA2AN) is a VHF full-keypad display commercial portable two-way radio in the MOTOTRBO CP100d Series. Dealer listings identify it as a 136–174 MHz model with 16 channels.

How does the Motorola CP100d-VF work?

It works as a handheld two-way radio for business communications over programmed VHF channels. Within the CP100d family, Motorola supports analog and digital voice communications, allowing use in legacy analog systems and migration toward DMR digital operation.

Why is the Motorola CP100d-VF important?

It is important because it combines easy-to-use commercial radio design, display and keypad flexibility, and Motorola’s analog-to-digital migration path in a rugged portable platform.

What are the benefits of the Motorola CP100d-VF?

Its main benefits are VHF coverage, full keypad display operation, rugged IP54 construction, digital migration capability, and practical business-radio features like Voice Announcement and programmable buttons.

Is the Motorola CP100d-VF analog or digital?

The broader CP100d platform supports both analog and digital voice communications, and Motorola also notes that analog-only versions can later unlock digital capability through software upgrade. For the exact AAH87JDF9JA2AN, dealer listings emphasize the CP100d display VHF configuration rather than clearly distinguishing whether the shipped unit is currently analog-enabled only or already dual-mode, so buyers should confirm that point with the seller.

Summary

The Motorola CP100d-VF Commercial Portable Two-Way Radio (AAH87JDF9JA2AN) is a practical VHF full-keypad display handheld built on Motorola’s CP100d platform. It combines 136–174 MHz VHF operation, commercial durability, display-and-keypad usability, and a documented path from analog to digital within the MOTOTRBO ecosystem. For businesses seeking a Motorola CP100d display radio that can serve hospitality, events, facilities, and light industrial teams while supporting future system growth, the CP100d-VF remains a strong entry-level professional option.
