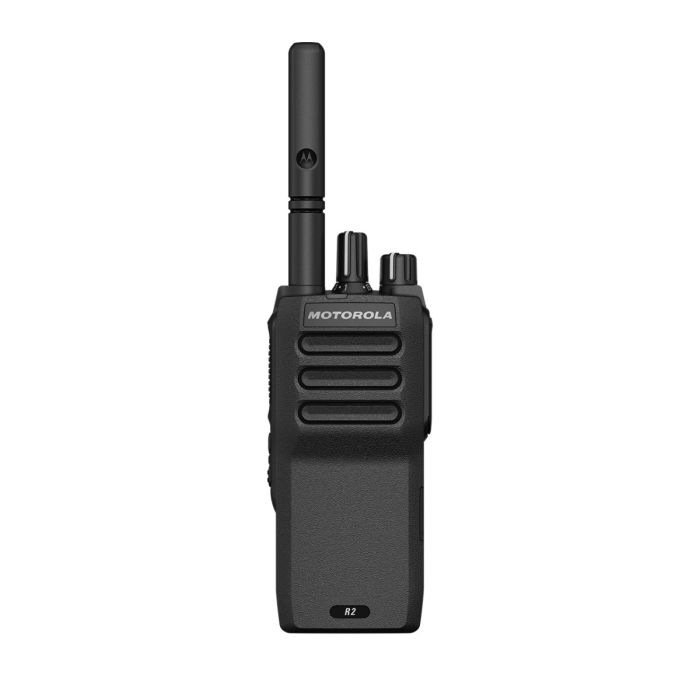

Motorola R2-DV PKG VHF Portable Two-Way Radio (AAH1JYDC9JA2AN)

Motorola R2-DV PKG VHF Portable Two-Way Radio (AAH1JYDC9JA2AN)

Within the R2 family, the VHF model is designed for organizations that want a dependable portable radio with modern MOTOTRBO capability without moving up to more expensive feature-heavy handhelds. Motorola’s current data sheets list the R2 with 64 channels, support for single-site conventional operation, Extended Range Direct Mode, and Dual Capacity Direct Mode, placing it solidly in the professional business-radio segment rather than the consumer walkie-talkie market.

The specific model code AAH1JYDC9JA2AN is sold by resellers as the R2-DV PKG VHF version. Motorola’s official R2 data sheets list the VHF band at 136–174 MHz with 5W high power and 1W low power, which matches the broader VHF R2 positioning used in dealer listings for this package model. The exact package contents can vary by reseller, but “PKG” commonly indicates a bundled radio set rather than a radio-only listing.

For buyers researching a Motorola VHF portable two-way radio for construction, utilities, logistics, education, security, maintenance, or general field operations, the R2 is best understood as a practical, voice-first radio with rugged design, strong battery life, and a clear upgrade path from analog to digital communications. That positioning is based on Motorola’s published product language and the documented feature set.

Design and Features

Work-focused handheld design

Motorola emphasizes that the R2 is built for confident, easy handling. The official R2 materials describe the radio as durable and ergonomic, with a sleek form factor suited to everyday commercial use. This makes it well suited to users who need a radio that can be clipped on, carried across long shifts, and operated with minimal complexity.

Voice-first operation

The R2 is a non-display, voice-centered professional radio intended for reliable push-to-talk communications rather than on-device text-heavy workflows. Motorola’s documentation highlights features such as voice announcement, home channel reminder, and dual priority scan, reinforcing its role as a straightforward operational tool for teams that need clear communications more than menu-driven interaction.

Analog and digital flexibility

One of the most important strengths of the R2 is its support for analog and digital operation. Motorola’s data sheets and brochure materials show the radio as part of the MOTOTRBO digital ecosystem while also supporting analog use. This dual-mode capability is especially useful for organizations migrating from legacy analog fleets to newer digital deployments in stages.

Audio enhancement features

Motorola gives the R2 a stronger audio profile than many basic radios. Official materials list SINC+ noise suppression, acoustic feedback suppression, received audio leveling, user-selectable audio profiles, and loudness up to 101 phons in the regional data sheets. These features are intended to improve intelligibility in noisy environments such as construction sites, warehouses, plant floors, and outdoor work areas.

Technology and Specifications

Frequency range and output power

Motorola’s current EMEA and North America data sheets list the R2 VHF version at 136–174 MHz. They specify 5W high power and 1W low power for VHF models. This is the core RF profile buyers are generally looking for when they search for the R2-DV VHF portable radio.

Channel capacity

The R2 supports 64 channels, giving it enough capacity for multiple workgroups, departments, shifts, or sites while still remaining simple to deploy and manage. For many businesses, that is a practical midpoint between entry-level 16-channel radios and larger, more complex models. The channel count is official; the deployment value is an inference from that capacity.

Systems support

Motorola’s published materials list support for single-site conventional, Extended Range Direct Mode, Dual Capacity Direct Mode, IP Site Connect, and Capacity Plus single site, 2 repeaters, depending on region and system design. That means the R2 can function both as a straightforward direct-mode radio and as part of a wider MOTOTRBO infrastructure.

Battery life

Motorola’s R2 family materials commonly cite strong battery runtime. Dealer and regional references based on Motorola specifications list up to 26.5 hours in digital mode with the PMNN4598 high-capacity battery and up to 22.5 hours in digital mode with the PMNN4600 slim battery, based on a 5/5/90 duty cycle at maximum transmitter power. Real-world endurance varies with transmit load, power level, enabled features, and battery type.

Durability and environmental protection

Motorola’s published R2 materials describe the radio as rugged to MIL-STD 810 and rated IP55 for dust and water ingress protection. The brochure also notes that it is designed to withstand diverse work conditions. This makes the R2 more suitable for demanding professional environments than consumer radios or lighter-duty handsets.

Operating environment

Regional product references list an operating temperature range of about -30°C to +60°C, which is consistent with the R2’s work-focused positioning. That matters for organizations using radios in outdoor operations, transport fleets, industrial facilities, and variable-weather settings.

Applications and Use Cases

Construction and field service

The R2-DV PKG VHF is well suited to construction crews, installers, contractors, and field service technicians who need a radio that is easy to use, durable, and audible in loud environments. Motorola’s ruggedness and audio features strongly support this type of deployment. The use-case fit is an inference from the documented design and performance profile.

Utilities and infrastructure teams

VHF radios are commonly used in more open-area environments, and Motorola’s 136–174 MHz, 5W R2 configuration makes it a practical option for utilities, site services, and infrastructure operations that need dependable portable coverage across larger work areas. The propagation benefit is a standard radio-planning inference; the band and power values are official.

Warehousing, logistics, and transport

The R2’s combination of 64 channels, long battery life, and sturdy construction makes it suitable for warehouses, logistics hubs, fleet yards, and transport support teams. Motorola specifically positions the R2 as a radio built for uninterrupted workdays, which aligns well with multi-shift operational environments.

Education, facilities, and commercial operations

Schools, campuses, maintenance departments, and commercial properties often need dependable internal communications without the cost or complexity of advanced display radios. The R2’s voice-first design and MOTOTRBO compatibility make it a good fit for these roles. This is an inference from the product’s documented feature scope and simplicity.

Advantages / Benefits

Simple but professional platform

A major strength of the Motorola R2 is that it keeps operation simple while still offering professional digital-radio capabilities. It is easier to standardize across larger teams than feature-dense radios, but it remains part of the broader MOTOTRBO ecosystem.

Strong VHF performance

With 136–174 MHz coverage and 5W transmit power, the R2 VHF model gives buyers a solid professional radio option for open-area and mixed-field use. Actual coverage depends on antenna, terrain, buildings, and system design, but the VHF power profile is one of the model’s key practical advantages.

Better audio for noisy workplaces

Motorola’s SINC+ noise suppression, acoustic feedback suppression, and selectable audio profiles are meaningful benefits for users working in environments where voice clarity affects safety and productivity.

Good battery endurance

The published runtime figures make the R2 attractive for long workdays and multi-shift operations, particularly when configured with the higher-capacity battery.

FAQ Section

What is the Motorola R2-DV PKG VHF Portable Two-Way Radio?

The Motorola R2-DV PKG VHF Portable Two-Way Radio is a MOTOTRBO professional handheld radio in the R2 family. The model code AAH1JYDC9JA2AN is sold as a VHF package model, and the R2 VHF platform operates in the 136–174 MHz band with 5W high power.

How does the Motorola R2-DV PKG work?

It works as a push-to-talk portable radio that supports both analog and digital communications. Depending on programming and infrastructure, it can operate in direct mode or within MOTOTRBO systems such as single-site conventional, IP Site Connect, or Capacity Plus environments.

Why is the Motorola R2-DV PKG important?

It is important because it combines rugged commercial construction, 64 channels, strong battery life, audio enhancement features, and a clear analog-to-digital migration path in a relatively simple radio platform.

What are the benefits of the Motorola R2-DV PKG?

Its main benefits include 136–174 MHz VHF coverage, 5W transmit power, 64 channels, IP55 durability, analog/digital compatibility, and Motorola audio features such as SINC+ noise suppression and acoustic feedback suppression.

Summary

The Motorola R2-DV PKG VHF Portable Two-Way Radio (AAH1JYDC9JA2AN) is a practical professional handheld for organizations that need reliable VHF voice communications, modern MOTOTRBO compatibility, and durable everyday performance. With 136–174 MHz coverage, 5W power, 64 channels, IP55 protection, and a feature set built around strong audio and straightforward operation, it remains a strong option for construction, utilities, logistics, facilities, education, and general field operations.
