Motorola SLR5700-G7 UHF Repeater 450-512 MHz (AAR10TCGANQ1AN)

Motorola SLR5700-G7 UHF Repeater 450-512 MHz (AAR10TCGANQ1AN)

For the exact model requested, commercial listings consistently identify AAR10TCGANQ1AN as the UHF2 450–512 MHz version of the SLR 5700. Motorola’s official data sheet groups UHF operation under the 400–470 MHz product family range, while resellers and dealers break out the specific orderable UHF2 450–512 MHz configuration under this part number. In other words, the SKU-level band split comes through dealer listings, while Motorola’s published family data sheet provides the platform specifications.

One important note: I found strong commercial evidence for the exact SKU AAR10TCGANQ1AN, but I did not find an official Motorola page that uses the exact marketing label “G7” for this repeater. Seller pages use “SLR5700-G7” in the title, while Motorola’s own materials refer more broadly to the SLR 5000 Series and SLR 5700. So the article below is grounded in official Motorola SLR 5700 platform documentation plus dealer confirmations of the exact SKU and band split.

Design and Features

Compact 1U Rack-Mount Architecture

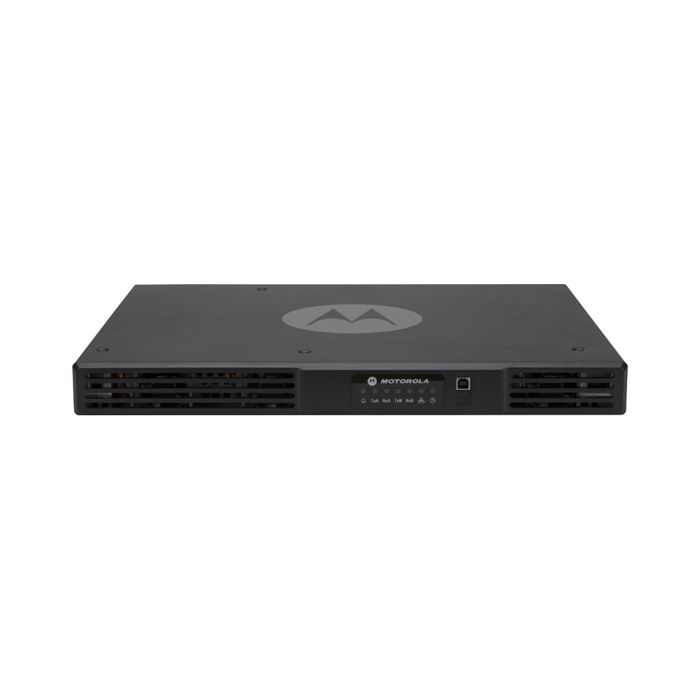

A defining feature of the Motorola SLR 5700 is its 1U rack footprint, which lets it fit cleanly into standard 19-inch communications racks. Motorola lists the chassis at approximately 44 x 483 x 370 mm (1.75 x 19 x 14.6 inches), making it suitable for telecom closets, dispatch rooms, equipment shelters, and industrial cabinets where space efficiency matters. This compact design is a major reason the SLR 5700 is widely used as core radio infrastructure rather than as an ad hoc repeater solution.

High-Power, Continuous-Duty Operation

Motorola’s data sheet identifies the SLR 5700 as supporting 1–50 watts of RF output power and a 100% duty cycle. That combination is significant because many organizations need a repeater that can remain active continuously without compromising performance. In practical terms, this makes the unit suitable for busy security channels, logistics operations, manufacturing teams, hospitality campuses, transport fleets, and utility networks where radio traffic can remain heavy throughout the day.

Low Cost of Ownership

Motorola emphasizes that the SLR 5000 platform was engineered for low power consumption and low ongoing ownership cost. The company also highlights field-replaceable power amplifier, power supply, and modem modules, which makes service easier and can reduce downtime compared with older repeater designs that require more invasive repair work. This is especially relevant for organizations running remote or lightly supervised sites.

Installation and Site Utility Features

The SLR 5700 includes practical infrastructure features such as a front USB port, two Ethernet ports, an integrated 3A battery charger, alarm ports, and auxiliary power output. Dealers also highlight support for RDAC (Remote Diagnostics, Alarms and Controls), which is important in managed radio systems where technicians need visibility into site health without constant travel.

Technology and Specifications

Frequency Range and Exact Configuration

The requested model AAR10TCGANQ1AN is consistently identified by dealers as the UHF2 450–512 MHz version of the SLR 5700. Official Motorola family documentation lists the UHF repeater band broadly as 400–470 MHz, but dealer SKU tables break out the higher UHF split separately and associate it specifically with AAR10TCGANQ1AN. Because the user asked about the exact part number, that SKU mapping matters more than the broader family label alone.

Core Platform Specifications

Motorola’s official SLR 5000 Series data sheet lists the platform with 64-channel capacity, 1–50W RF output, ±0.5 ppm frequency stability, 100% duty cycle, and support for 12.5/20/25 kHz channel spacing. The same data sheet positions the SLR 5700 as the high-power model above the lower-power SLR 5500 within the same platform family. These specifications place the repeater squarely in the commercial and industrial infrastructure class rather than the light-duty category.

Receiver and Transmitter Performance

Motorola lists receiver sensitivity at 0.22 µV for both 12 dB SINAD and 5% BER, along with low transmit and receive audio distortion figures. The transmitter section also includes adjacent-channel and spurious emission metrics consistent with a professional repeater platform. These figures matter because repeater performance is not just about power output; weak-signal handling, spectral cleanliness, and audio quality have major effects on real-world system reliability.

Networking and System Architecture

One of the SLR 5700’s strengths is that it supports a wide range of MOTOTRBO architectures. Motorola lists compatibility with Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus, Analog Conventional, and MPT 1327. This allows the repeater to serve not only as a basic coverage extender, but also as part of a much larger IP-linked or trunked radio network.

Power and Environmental Ratings

Motorola specifies 100–240 Vac, 47–63 Hz AC input and 11.0–14.4 Vdc DC input, with an operating temperature of -30 °C to +60 °C. The repeater is also rated for 90% non-condensing humidity at 50 °C, which supports deployment in demanding indoor equipment rooms and sheltered infrastructure sites. Combined with the built-in battery charger, this makes the unit suitable for installations where uptime and backup planning are important.

Applications and Use Cases

The Motorola SLR5700-G7 UHF repeater is primarily intended for organizations that need to extend two-way radio coverage and support dependable site-wide communication. In warehouses, factories, hotels, school campuses, hospitals, transport hubs, and private security operations, repeaters like this serve as the backbone of the radio system, improving coverage and helping handheld or mobile radios communicate reliably across larger footprints. Motorola explicitly markets the SLR 5000 Series as a way to connect organizations “from the field to the factory floor.”

The 450–512 MHz UHF configuration is especially relevant in settings where users need strong performance in built environments and compatibility with specific UHF system plans. While actual suitability depends on licensing, regional regulation, antenna system design, and site conditions, this band split is commonly used for professional business and public-safety-adjacent UHF deployments. That final point is an inference from the band and the way dealers separate UHF1 and UHF2 models, rather than a specific Motorola claim about a single vertical market.

The repeater is also a strong fit for customers migrating from analog to digital. Because the SLR 5700 supports analog, digital, and mixed-mode operation, organizations can upgrade infrastructure without forcing an immediate replacement of every subscriber radio in the fleet. That gradual migration path is one of the enduring advantages of the MOTOTRBO repeater line.

Advantages / Benefits

A major benefit of the SLR 5700 is its combination of high output power, continuous-duty reliability, and compact rack efficiency. Many repeaters can offer one or two of those traits, but the SLR 5700 combines all three in a platform designed for long-term infrastructure use. For organizations that need a dependable core repeater without giving up rack space, that balance is compelling.

Another important benefit is system flexibility. The repeater supports nearly every major MOTOTRBO deployment style, from a conventional site to multi-site IP linking and trunking. This gives customers room to start small and expand later without discarding the repeater platform. That kind of upgrade path is valuable for growing enterprises or institutions that expect radio requirements to become more complex over time.

The SLR 5700 also benefits from maintainability and site support features. Field-replaceable modules, integrated battery charging, dual Ethernet, RDAC support, and alarm interfaces all reduce service friction. In infrastructure products, those operational details often matter just as much as the headline RF specifications.

FAQ Section

What is the Motorola SLR5700-G7 UHF Repeater 450-512 MHz (AAR10TCGANQ1AN)?

It is a professional MOTOTRBO repeater used to extend two-way radio coverage. The exact part number AAR10TCGANQ1AN is identified by dealers as the UHF2 450–512 MHz version of the Motorola SLR 5700 platform.

How does the Motorola SLR5700-G7 work?

Like other repeaters, it receives radio traffic on one frequency and retransmits it on another to extend range and improve coverage. Motorola’s SLR 5700 also supports digital MOTOTRBO system types such as IP Site Connect, Capacity Plus, and Capacity Max, in addition to analog and mixed-mode operation.

Why is the Motorola SLR5700-G7 important?

It is important because it provides 50W power, continuous-duty performance, and modern MOTOTRBO system support in a compact 1U rack chassis. That makes it useful as the backbone of a professional UHF radio network.

What are the benefits of the Motorola SLR5700-G7?

The main benefits are 450–512 MHz UHF operation, 1–50W output, 100% duty cycle, 64-channel platform capacity, analog/digital interoperability, and support for major MOTOTRBO network architectures.

Is the Motorola SLR5700-G7 rack mountable?

Yes. Motorola’s official SLR 5000 data sheet shows a 1U, 19-inch rack form factor, and dealer listings for the exact SKU describe it as rack mountable, with optional wall mounting available separately.

What frequency does AAR10TCGANQ1AN use?

Dealer SKU listings identify AAR10TCGANQ1AN as the UHF2 450–512 MHz variant of the SLR 5700 repeater.

Summary

The Motorola SLR5700-G7 UHF Repeater 450-512 MHz (AAR10TCGANQ1AN) is a high-power MOTOTRBO repeater designed for organizations that need reliable UHF radio infrastructure in a compact rack-mount form. Based on Motorola’s official SLR 5700 platform documentation and dealer confirmation of the exact SKU, it offers 1–50W output, 100% duty cycle, broad MOTOTRBO architecture support, and a strong fit for demanding business and industrial radio networks. The most precise way to identify the requested model is by the part number AAR10TCGANQ1AN, especially since the “G7” label appears in dealer usage more clearly than in Motorola’s public product literature.
