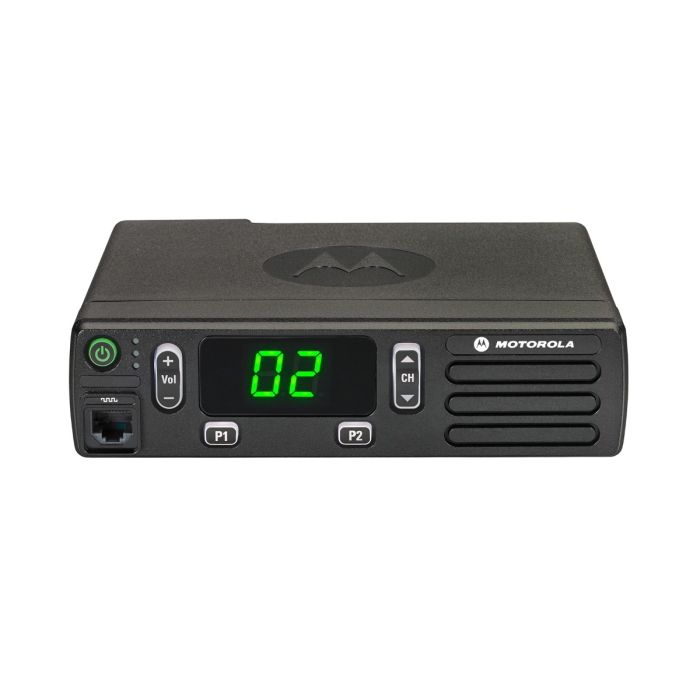

Motorola CM200d-AV-45 Mobile Two-Way VHF Radio (AAM01JQC9JC1_N)

Motorola CM200d-AV-45 Mobile Two-Way VHF Radio (AAM01JQC9JC1_N)

The exact CM200d-AV-45 variant is widely listed by specialist dealers as a VHF analog model covering 136–174 MHz, with 45 watts of output and 16 channels. Dealer listings for the exact part number AAM01JQC9JC1_N also consistently describe features such as Auto/Priority/Dual Priority Scan, Quik Call II selective calling, MDC1200 PTT ID encode, VOX, Busy Channel Lockout, and Time-Out Timer.

For buyers searching terms such as Motorola CM200d-AV-45, AAM01JQC9JC1_N, Motorola VHF mobile radio, or 45 watt commercial mobile two-way radio, this model stands out as a practical analog-first mobile radio that can fit both vehicle installations and fixed local base-station style use. Motorola’s official CM Series specification sheet confirms the VHF CM200d platform supports 136–174 MHz, 16 channels, and 25–45 W high-power operation, while dealer listings tie those family specifications to this exact AV-45 model.

The Motorola CM200d is one of the two core radios in the CM Series Mobile Two-Way Radio family, alongside the CM300d. Motorola’s official product literature presents the series as a simple, reliable mobile-radio platform designed to help teams “communicate, coordinate and collaborate” more efficiently in everyday field operations. Motorola specifically points to use cases such as cargo delivery, dispatch-linked work, and school transportation.

Within that family, the CM200d is the more basic model. Motorola’s specification sheet lists the CM200d with a numeric display and 16 channels, while the CM300d adds an alphanumeric display and 99 channels. That means the CM200d-AV-45 is best understood as a straightforward fleet radio focused on core voice communications rather than expanded display or large channel-bank management.

The exact AAM01JQC9JC1_N part number is consistently presented by dealers as the VHF, analog, 45-watt configuration of the CM200d. Several sellers also note that the radio is upgradeable to MOTOTRBO DMR digital operation using Motorola’s software key, which aligns with Motorola’s broader messaging that analog CM Series radios can provide a migration path toward digital systems.

Design and Features

Numeric Display and Simple User Interface

The CM200d is built around a numeric display and a relatively simple front panel. Motorola’s CM Series documentation explicitly distinguishes the CM200d from the CM300d by describing the CM200d as the numeric-display member of the family. This simpler interface helps keep operation straightforward for drivers, technicians, and vehicle-based crews who need quick channel access without a more feature-heavy front panel.

Dealer descriptions for the exact CM200d-AV-45 emphasize that the radio remains practical and easy to deploy in business settings. Because it is designed as a mobile radio, it is intended for installation in trucks, service vans, buses, utility vehicles, maintenance units, and similar operational vehicles rather than handheld personal carry. That use case is consistent across Motorola’s official CM family positioning and dealer model listings.

Analog Operation with Digital Upgrade Path

A major strength of the CM200d platform is that it supports an analog-first deployment model while remaining connected to the broader MOTOTRBO ecosystem. Motorola says the CM Series can support both analog and digital modes, and that analog-only radios can transition to digital later through a software upgrade path. Multiple dealers listing AAM01JQC9JC1_N explicitly describe the radio as analog and upgradeable to MOTOTRBO DMR digital operation.

This is strategically important for organizations replacing older analog mobile radios. Instead of forcing a full fleet replacement into digital immediately, the CM200d-AV-45 can serve current analog needs while preserving a future migration path. That makes it especially attractive to smaller businesses, municipal fleets, and organizations with limited short-term radio budgets. This conclusion is an inference based on Motorola’s and dealer descriptions of upgradeability.

Scan and Signaling Features

Dealer listings for the exact CM200d-AV-45 consistently mention Auto Scan, Priority Scan, Dual Priority Scan, Quik Call II Call Alert/Selective Call, MDC1200 PTT ID encode, VOX, Audio Indicator Tones, Busy Channel Lockout, and Time-Out Timer. These are classic commercial-radio functions that help dispatch and work-crew users manage call discipline, identify units, and move efficiently across one or more operating channels.

Motorola’s official CM Series sheet also lists platform-level features such as Transmit Interrupt (decode only), Dual Capacity Direct Mode, Voice Announcement, Basic Privacy, and Radio Management Suite compatibility, with some features dependent on digital mode. This puts the CM200d above legacy analog-only mobiles that offer no practical digital migration features at all.

Rugged Commercial Build

Motorola rates the CM Series at IP54 when properly configured, and the official specification sheet references MIL-STD environmental ratings and Motorola’s Accelerated Life Test process. Motorola states that this testing is intended to simulate years of demanding field service. For a mobile radio, that matters because installations in work vehicles expose the unit to dust, vibration, temperature changes, and repeated daily handling.

Technology and Specifications

Core Specifications

Motorola’s official CM Series specification sheet lists the CM200d VHF version with the following main platform specifications:

• Frequency range: 136–174 MHz
• Channel capacity: 16
• Power range: 1–25 W low power, 25–45 W high power
• Dimensions: 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
• Weight: 2.9 lb (1.3 kg)

Dealer listings for AAM01JQC9JC1_N narrow this down to the specific 45-watt VHF analog configuration, matching the “AV-45” suffix. Multiple sources independently identify the exact model as 136–174 MHz, 45 watts, and 16 channels, which supports strong confidence in the exact commercial configuration.

Receiver, Audio, and Channel Performance

The official Motorola CM Series sheet lists 12.5 kHz / 25 kHz channel spacing, ±0.5 ppm frequency stability, analog sensitivity of 0.3 µV (12 dB SINAD) with 0.22 µV typical, and digital sensitivity of 0.25 µV (5% BER) with 0.19 µV typical for the CM platform. Audio output is listed as 4 W internal, 7.5 W external at 8 ohms, and 13 W external at 4 ohms.

These numbers show that the CM200d is engineered as a serious vehicle radio rather than a minimal communications accessory. In practice, mobile performance will still depend heavily on installation quality, antenna choice, and operating terrain, but the underlying platform is clearly commercial-grade. That second sentence is an inference based on the published spec set.

Power and Electrical Characteristics

Motorola’s sheet lists maximum current draw for the 25–45 W VHF version at 0.81 A standby, 2 A receive at rated audio, and up to 14.5 A max transmit. This is consistent with a high-power mobile radio intended for installation in 12V vehicle systems or related mobile power setups.

Environmental Ratings

Motorola lists the CM Series with:

• Operating temperature: -30°C to +60°C
• Storage temperature: -40°C to +85°C
• ESD: IEC 61000-4-2 Level 3
• Ingress protection: IP54
• MIL-STD references: environmental and packaging test compliance as noted in the spec sheet.

These details reinforce the radio’s suitability for transportation, outdoor maintenance, and field service vehicles.

Applications and Use Cases

The Motorola CM200d-AV-45 is best suited to organizations that need vehicle-mounted VHF communications for daily operations.

Transportation and Delivery Fleets

Motorola’s official CM Series product literature explicitly mentions everyday drivers, cargo delivery, and school transportation as examples of intended users. In these settings, the CM200d-AV-45 offers reliable voice contact between drivers, dispatchers, and operational supervisors.

Agriculture and Rural Operations

One dealer specifically states that the VHF CM200d is ideal for agriculture, transportation, retail, and hospitality businesses that need to increase range. VHF is often preferred in broader outdoor areas and rural operating conditions, making the AV-45 configuration a logical fit for farms, ranches, forestry support, and large open-site service operations. The VHF propagation point is a standard radio-planning inference; the business categories come from the dealer listing.

Facilities, Maintenance, and Service Vehicles

Service trucks, utility crews, municipal maintenance fleets, and campus operations can also use the CM200d-AV-45 effectively. The combination of 16 channels, high power, and scan/signaling support makes it practical for coordinated vehicle-based field work where simple voice contact matters more than advanced display functions. This application is an inference supported by the published feature set and Motorola’s broader business-use positioning.

Fixed Local Base-Style Use

Dealers also note that the radio can be used with a 120V AC power supply and base antenna to improve local coverage in an operating area. That means the CM200d-AV-45 is not limited strictly to vehicles; it can also support a fixed local desk, depot, or operations-room style role when deployed correctly.

Advantages / Benefits

High-Power VHF Mobile Performance

The 45-watt VHF output is one of the radio’s clearest advantages. Compared with lower-power mobiles or handheld radios, it provides stronger mobile transmit capability for commercial fleet communications.

Straightforward 16-Channel Structure

The 16-channel layout keeps operation simple and focused. For many businesses, especially smaller fleets, 16 channels is enough to organize operations without adding complexity.

Analog Simplicity with Upgrade Potential

The model is sold as analog, which makes it easy to integrate into existing conventional fleets, but Motorola and dealers also describe it as upgradeable to digital operation. That combination can reduce risk for businesses modernizing gradually.

Practical Commercial Features

Features such as MDC1200 PTT ID, Quik Call II, VOX, scan modes, and Busy Channel Lockout make the radio practical for real business operations rather than bare-bones voice-only use.

Rugged Business-Use Construction

IP54 protection, Motorola life testing, and MIL-STD references support use in vehicles and demanding field environments.

FAQ Section

What is the Motorola CM200d-AV-45 Mobile Two-Way VHF Radio?

The Motorola CM200d-AV-45 (AAM01JQC9JC1_N) is a VHF analog commercial mobile two-way radio in the MOTOTRBO CM Series. Dealer listings identify it as a 136–174 MHz, 45-watt, 16-channel model.

How does the Motorola CM200d-AV-45 work?

It works as a vehicle-mounted or fixed-mobile two-way radio, transmitting and receiving voice traffic on programmed VHF channels. The model is sold as analog, while the broader CM platform is associated with a migration path toward digital operation.

Why is the Motorola CM200d-AV-45 important?

It is important because it offers high-power VHF communications, simple 16-channel operation, and a practical upgrade path for businesses still using conventional analog fleets.

What are the benefits of the Motorola CM200d-AV-45?

Its main benefits are 45-watt VHF output, 16-channel simplicity, scan and signaling features, rugged commercial construction, and upgradeability toward MOTOTRBO digital operation.

Is the Motorola CM200d-AV-45 analog or digital?

The exact AAM01JQC9JC1_N model is widely listed as analog by dealers. However, Motorola and dealer sources indicate that CM200d analog radios can be upgraded for digital capability in the broader MOTOTRBO environment.

Summary

The Motorola CM200d-AV-45 Mobile Two-Way VHF Radio (AAM01JQC9JC1_N) is a practical commercial mobile radio built for businesses that want dependable VHF 136–174 MHz communications with 45 watts of output, 16 channels, and a straightforward operator experience. As part of Motorola’s MOTOTRBO CM Series, it offers the benefits of durable business-radio construction, classic fleet features such as scan and signaling, and a meaningful path toward digital migration when needed. For transportation, agriculture, facilities, maintenance, and service fleets looking for a Motorola VHF mobile two-way radio, the CM200d-AV-45 remains a strong fit.
