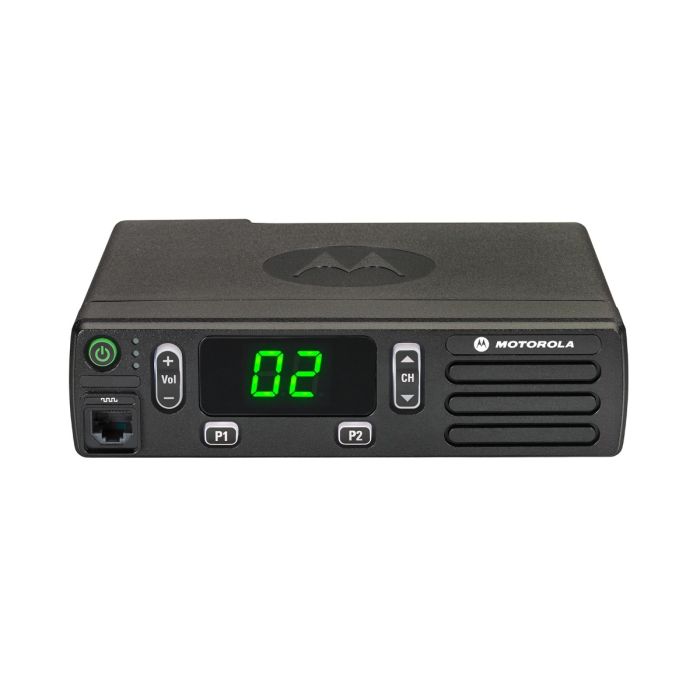

Motorola CM200d-DV-25 PKG Mobile Two-Way VHF Radio (AAM01JNC9JA1_N)

Motorola CM200d-DV-25 PKG Mobile Two-Way VHF Radio (AAM01JNC9JA1_N)

The exact AAM01JNC9JA1_N configuration is widely listed by dealers as the CM200d-DV-25 PKG, a VHF digital conventional mobile radio covering 136–174 MHz, with 25 watts of output and 16 channels. Dealer listings for this exact model also describe features such as Basic Privacy, Radio Check, Remote Monitor, Radio Inhibit, Dual Priority Scan, Transmit Interrupt, and Dual Capacity Direct Mode, which place it clearly on the digital side of the CM200d family rather than among the analog-only variants.

For buyers searching phrases such as Motorola CM200d-DV-25, AAM01JNC9JA1_N, Motorola VHF digital mobile radio, or 25 watt DMR mobile radio, this model is especially relevant because it combines the simpler CM200d form factor with digital MOTOTRBO capability. Motorola’s official CM Series specification sheet confirms the family supports 16 channels on the CM200d, VHF 136–174 MHz, and 25–45 W high-power VHF operation, while exact-model dealer listings narrow that to the 25-watt digital VHF package.

The Motorola CM200d is one of two main radios in the CM Series Mobile Two-Way Radio family, alongside the CM300d. Motorola positions the family as a practical solution for mobile teams such as cargo delivery, dispatch-linked workers, and school transportation users who need dependable voice communications without jumping immediately into more complex radio platforms.

Within that family, the CM200d is the simpler model. Motorola’s specification sheet identifies the CM200d as the numeric-display version with 16 channels, while the CM300d adds an alphanumeric display and 99 channels. That distinction means the CM200d-DV-25 is aimed at users who need core mobile-radio capability and digital features, but not the expanded front-panel interface of the CM300d.

The exact AAM01JNC9JA1_N variant is consistently described as a digital VHF 25-watt model. Dealer sources list it as 16 channels, 136–174 MHz, and DMR / digital conventional, with some sellers also noting that it can be programmed with analog for easier migration. That makes the radio especially suitable for organizations moving from analog fleets into MOTOTRBO digital operation without changing to a different mobile-radio family.

Design and Features

Numeric Display and Straightforward Operation

The CM200d platform is designed around a numeric display and a relatively simple front panel. Motorola’s official CM Series sheet clearly distinguishes the CM200d from the CM300d on this basis. For many vehicle-based users, that simpler interface is an advantage: it reduces front-panel complexity while still supporting key commercial mobile-radio functions.

In practical terms, that makes the CM200d-DV-25 a strong fit for drivers, technicians, field crews, and service fleets that need dependable communication more than complex display workflows. This is an inference from the CM200d’s simpler numeric-display positioning and channel count.

Digital Conventional Operation

A major differentiator of the CM200d-DV-25 PKG is that it is sold as a digital conventional radio rather than an analog-only mobile. Dealer listings for the exact model describe it as Digital Conventional, 25W, 16 Channels, and include features such as Basic Privacy, Radio Check, Remote Monitor, Radio Inhibit, Transmit Interrupt, and Dual Capacity Direct Mode. Those are features associated with managed digital operations rather than basic analog-only communications.

Motorola’s official CM Series sheet supports that broader positioning by listing Dual Capacity Direct Mode, Transmit Interrupt (decode only), Voice Announcement, Basic Privacy, and Radio Management Suite compatibility as CM family features, with some of them associated with digital operation.

Analog Compatibility for Migration

Even though the DV-25 is sold as a digital model, dealer listings also state that the radio can be programmed with analog for easy migration. That is important because many organizations still have mixed analog/digital fleets or are upgrading in phases. The CM200d-DV-25 can therefore fit into both current analog operations and future digital deployments.

Rugged Commercial Build

Motorola’s official CM Series sheet rates the family at IP54 and references MIL-STD environmental testing and Motorola’s Accelerated Life Test program. Motorola states that the radios are designed to simulate years of hard field use. That durability matters in trucks, service vans, utilities vehicles, maintenance fleets, and other mobile applications where vibration, dust, and temperature variation are common.

Technology and Specifications

Core Technical Specifications

Motorola’s official CM Series specification sheet lists the following platform-level details for the CM200d VHF range:

• Frequency range: 136–174 MHz
• Channel capacity: 16
• Power range: 1–25 W low power, 25–45 W high power
• Dimensions: 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
• Weight: 2.9 lb (1.3 kg)

Dealer listings for AAM01JNC9JA1_N narrow that broader family data to the exact model: VHF, 136–174 MHz, 25 watts, 16 channels, and digital. Multiple sources repeat those same specifications, which strongly supports the exact identification of this package configuration.

Receiver, Audio, and Electrical Performance

Motorola’s official sheet lists 12.5 kHz / 25 kHz channel spacing, ±0.5 ppm frequency stability, analog sensitivity of 0.3 µV (12 dB SINAD) with 0.22 µV typical, and digital sensitivity of 0.25 µV (5% BER) with 0.19 µV typical. It also lists 4 W internal audio, 7.5 W external at 8 ohms, and 13 W external at 4 ohms.

These figures show that the CM200d-DV-25 is a true commercial mobile radio rather than a light-duty accessory. In real-world deployments, final performance still depends on antenna choice, installation quality, and operating terrain, but the platform’s published specs are consistent with professional fleet use. The second sentence is an inference based on the official technical profile.

Current Draw and Mobile Power Use

For the 1–25 W configuration, reseller specifications based on the same platform list current draw around 0.81 A standby, 2 A receive, and 11.0 A maximum transmit. These figures fit the role of a 25-watt mobile radio designed for vehicle or fixed-mobile installations.

Environmental Specifications

Motorola lists the CM Series with:

• Operating temperature: -30°C to +60°C
• Storage temperature: -40°C to +85°C
• ESD: IEC 61000-4-2 Level 3
• Ingress protection: IP54

These ratings support use in transportation, utilities, maintenance, and field-service environments where mobile radios face harsher conditions than ordinary office electronics.

Applications and Use Cases

The Motorola CM200d-DV-25 PKG is best suited to organizations that need vehicle-mounted VHF digital communications with a relatively simple operator interface.

Transportation and Fleet Dispatch

Motorola’s official CM Series documentation points directly to cargo delivery, dispatch-linked operations, and school transportation as examples of intended use. The CM200d-DV-25 fits these scenarios well because it provides VHF coverage, 16-channel simplicity, and digital fleet features without requiring the more complex CM300d front panel.

Agriculture and Rural Field Operations

Because the radio is a VHF 136–174 MHz model, it is a strong fit for open-area and rural-style operations where VHF is often preferred. This includes agriculture, rural service fleets, municipal works, and broader-area mobile coordination. The VHF use-case portion is an inference based on the band and standard radio-planning practice.

Utilities, Maintenance, and Mobile Service Teams

Utilities vehicles, maintenance trucks, contractors, and field-service fleets can benefit from the CM200d-DV-25’s digital features such as Basic Privacy, Radio Check, and Remote Monitor, especially where supervisory control and fleet management matter. Dealer listings explicitly highlight those features for this exact model.

Fixed-Mounted Local Base Use

At least one dealer notes that the CM200d platform can be used with a base antenna and compatible power arrangement for local fixed operation. That makes the DV-25 useful not only in vehicles but also in small dispatch points, yards, shops, and local operations rooms. This use case is grounded in dealer descriptions of CM200d deployment flexibility.

Advantages / Benefits

Digital Capability in a Simple Mobile Format

The most important advantage of the CM200d-DV-25 is that it brings digital conventional MOTOTRBO capability into the simpler CM200d form factor. Buyers get digital fleet features without moving to the larger-channel CM300d.

25-Watt VHF Mobile Performance

Its 25-watt VHF output makes it more capable than handheld radios for vehicle-based coverage and local fixed-mobile use. Dealer listings and Motorola’s VHF power specifications both support this.

16-Channel Simplicity

The 16-channel structure keeps operations straightforward. For many fleets, that is enough channel capacity without adding complexity. Motorola’s official sheet consistently defines the CM200d as a 16-channel radio.

Analog Compatibility During Migration

Dealer listings note that the radio can be programmed with analog for migration, which is especially useful for mixed fleets transitioning gradually toward digital.

Rugged Commercial Durability

Motorola’s IP54 rating, MIL-STD references, and life-testing claims help make the CM200d-DV-25 a practical long-term work radio for vehicles and demanding business environments.

FAQ Section

What is the Motorola CM200d-DV-25 PKG Mobile Two-Way VHF Radio?

The Motorola CM200d-DV-25 PKG (AAM01JNC9JA1_N) is a VHF digital conventional mobile radio in the MOTOTRBO CM Series. Dealer listings identify it as a 136–174 MHz, 25-watt, 16-channel model.

How does the Motorola CM200d-DV-25 work?

It works as a vehicle-mounted or fixed-mobile two-way radio, transmitting and receiving voice traffic over programmed VHF channels. The exact model is sold as a digital radio and can also be programmed with analog for migration in supported deployments.

Why is the Motorola CM200d-DV-25 important?

It is important because it combines digital fleet features, 25-watt VHF mobile performance, and simple 16-channel operation in an affordable commercial mobile-radio format.

What are the benefits of the Motorola CM200d-DV-25?

Its main benefits are digital conventional operation, 25-watt VHF output, 16-channel simplicity, Basic Privacy, Radio Check, Remote Monitor, and commercial-grade durability.

Is the Motorola CM200d-DV-25 analog or digital?

The exact AAM01JNC9JA1_N model is widely listed as digital by dealers, but those same listings also state that it can be programmed with analog for easy migration.

Summary

The Motorola CM200d-DV-25 PKG Mobile Two-Way VHF Radio (AAM01JNC9JA1_N) is a practical digital conventional VHF mobile radio designed for fleets and field teams that need dependable communications without unnecessary complexity. With 136–174 MHz coverage, 25-watt output, 16 channels, and MOTOTRBO digital features such as Basic Privacy, Radio Check, and Dual Capacity Direct Mode, it gives organizations a strong blend of simplicity and digital capability. For transportation, utilities, agriculture, maintenance, and service fleets looking for a Motorola VHF digital mobile radio, the CM200d-DV-25 remains a strong and relevant option.
