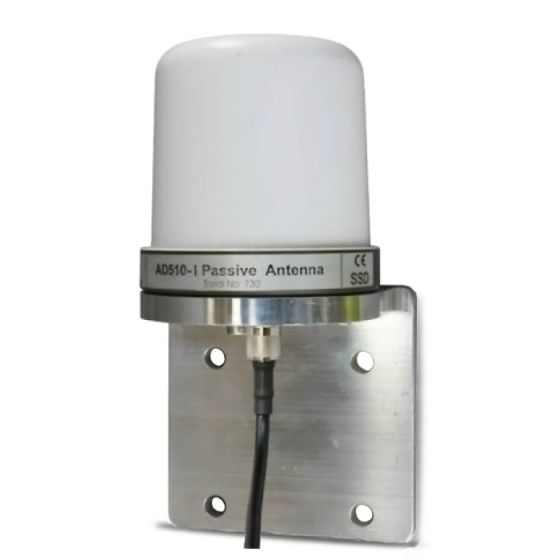

Iridium Passive Iridium Antenna (N-Type) w/ Aluminium Mounting Bracket (AD510-4)
Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.
In stock
- ផ្នែក #:
- AD510-4
- ORIGIN:
- ចក្រភពអង់គ្លេស
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 2-3 BUSINESS DAYS
- SKU:
- Iridium-AD510-4-Passive-Antena
499,95$
- Buy 2 for 484,95$ each and save 3%
- Buy 5 for 474,95$ each and save 5%
- Buy 10 for 449,96$ each and save 10%
Iridium Passive Iridium Antenna (N-Type) w/ Aluminium Mounting Bracket (AD510-4)
Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.
The bracket provided with each antenna can be attached to vertical or horizontal spars, up to 60 mm in diameter, using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC/N type on the underside of the antenna.
Passive Antenna utilises the Iridium satellite network.
Specifications
| ផ្នែក # | AD510-4 |
|---|---|
| ប្រភេទផលិតផល | ទូរសព្ទផ្កាយរណប |
| តំបន់ប្រើប្រាស់ | 100% GLOBAL |
| បណ្តាញ | IRIDIUM |
| សេវាកម្ម | IRIDIUM VOICE |
| ប្រើប្រភេទ | FIXED, MARITIME |
| ប្រភេទគ្រឿងបន្លាស់ | ANTENNA |
| ប្រេកង់ | L BAND (1-2 GHz) |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM 9500 |
| លក្ខណៈពិសេស | PASSIVE |
| HARMONIZED TARIFF NUMBER | 85177900 |
