Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)
In stock
- BRAND:
- BEAM
- PART #:
- RST933
- ORIGIN:
- United Kingdom
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Beam-Passive-Cable-RST933
US$450.00
Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)

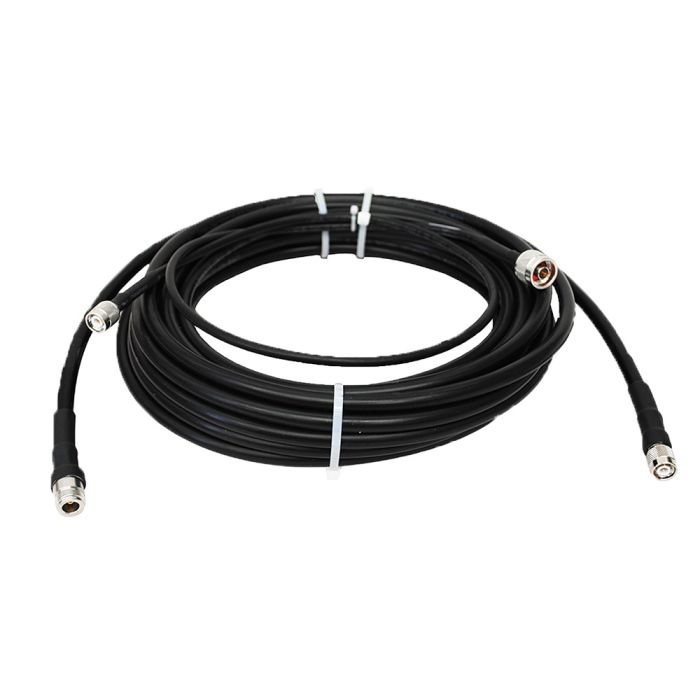

Beam RST933 Iridium 12 metre (36 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.
• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested
Main Cable (Passive)
| Length | m | ft |
| Main Cable | 11 | 36.09 |
| Dimensions | mm | inches |
| External Diameter | 10.29 | 0.41 |
| Bend Radius | 25.4 | 1 |
| Bend Radius - repeated | 101.6 | 4 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Fly-Lead (Passive)
| Length | m | ft |
| Fly-Lead | 1 | 3.28 |
| Dimensions | mm | inches |
| External Diameter | 6.1 | 0.24 |
| Bend Radius | 19.1 | 0.75 |
| Bend Radius - repeated | 63.5 | 2.5 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Connectors
| Main Cable | TNC-Male to N-Male |
| Fly-Lead | TNC-Male to N-Female |
Specifications
| PART # | RST933 |
|---|---|
| PRODUCT TYPE | SATELLITE PHONE |
| BRAND | BEAM |
| NETWORK | IRIDIUM |
| ACCESSORY TYPE | CABLE |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| FREQUENCY | L BAND (1-2 GHz) |
| FEATURES | PASSIVE |
| HARMONIZED TARIFF NUMBER | 85444210 |
