Iridium Edge Pro Short Burst Data Satellite Modem (EDGEPRO9690)

US$595.00
BRAND:
IRIDIUM
MODEL:
EDGE PRO
PART #:
EDGEPRO9690
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Iridium-Edge-Pro-SBD-Modem

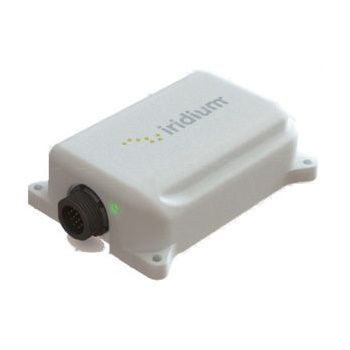

Iridium Edge Pro™

The Iridium Edge® Pro is a standalone Short Burst Data® (SBD) device with real-time GPS and a flexible programming platform

(software tools using JAVA), which allows developers to easily create and run their own custom-made applications. This

commercial off-the-shelf Iridium terminal includes a temperature sensor and accelerometer plus BLE, USB, and CanBus interfaces.

Key Markets:

  • Fleet Management
  • Remote Monitoring
  • SCADA
  • Asset Tracking
  • Maritime
More Information
PRODUCT TYPESATELLITE M2M, SATELLITE TRACKING
USE TYPEFIXED, MARITIME, VEHICULAR
BRANDIRIDIUM
MODELEDGE PRO
PART #EDGEPRO9690
NETWORKIRIDIUM
CONSTELLATION66 SATELLITES
USAGE AREA100% GLOBAL
SERVICEIRIDIUM SBD
LENGTH127 mm (5")
WIDTH90 mm (3.54")
DEPTH41 mm (1.61")
WEIGHT200 grams (7.05 oz)
FREQUENCYL BAND (1-2 GHz)
OPERATING TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)

Network:

  • Message Size: 240 bytes (Receive), 370 bytes (Transmit)
  • Frequency: 1616 – 1626.5 MHz

Mechanical:

  • Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
  • Ingress Protection: IP 67
  • Side and bottom cable exits

Environmental:

  • Operating temperature range: -40C to 85C
  • Storage temperature range: -40C to 85C

Interfaces:

  • RS232 AT command interface
  • On/Off control lines

Power:

    • Power Supply ( 9-32V), SAE J1455 Load dump protected
    • Reverse Polarity Protection
    • Maximum Power: 1.6W  (peak for short transmit burst)
    • Low Power Modes: < 100uA



Certifications:

  • Iridium® satellite network certification
  • FCC, IC, CE, Australia approvals
  • RoHS compliant

Iridium Global Coverage Map


Iridium Global Coverage Map

Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
