Paradigm Hornet 65AA

US$42,000.00
BRAND:
PARADIGM
MODEL:
HORNET 65AA
Stock Status:
In stock
AVAILABILITY:
SUBJECT TO AVAILABILITY
Product Code:
Paradigm-Hornet-65AA

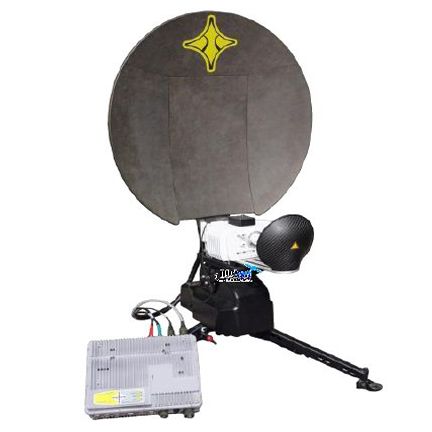

Paradigm Hornet 65AA
The Paradigm Hornet65AA (65cm) is a compact-sized mobile Global Xpress Certified solution that combines the Outdoor Paradigm Interface Module (PIM) with full Auto-Acquire motorisation. Combining both optimal performance and functionality, the 65AA series is enabled to provide access to the most advanced IP satellite services. The terminal is designed to provide the best possible performance on the Global Xpress network.

The Hornet65AA terminal is lightweight, rugged and quick to deploy and stow. The design is simple and robust for fast operation in demanding environments. The dual-offset antenna provides maximum efficiency and optimum radiation characteristics for improved data throughput and availability. It employs a 4-piece segmented, carbon fibre reflector that deploys quickly and accurately without the need for tools. The integrated motorised Az/El mount enables fully automatic satellite acquisition, giving signal lock in under 5 minutes from power-on.

The integrated Ka-Band transceiver houses a BUC, PLL LNB and all associated waveguide components in a sealed compact unit which requires no cooling fans. Pointing the antenna is fully automatic, utlising the Outdoor PIM’s integrated pointing tool. The Outdoor PIM is pre-tuned to the Inmarsat Global Signalling Channel which prevents accidental pointing to adjacent satellites.

The tripod is manufactured from aluminium with adjustable legs which provide a low profile and a wide operational footprint.

The terminal, Outdoor PIM, tripod and all cabling are supplied in a custom-built transit case.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEPORTABLE
BRANDPARADIGM
MODELHORNET 65AA
NETWORKINMARSAT
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT GX
ANTENNA SIZE65 cm (25.6 inch)
WEIGHT29.9kg (hors pélicase)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
INGRESS PROTECTIONIP 65
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
  • 65cm Carbon Fibre Segmented Reflector
  • 5W Transceiver & Feed
  • Tripod with Az/El Mount and Transceiver Base Unit
  • PIM Outdoor Unit
  • Full Auto-Acquire Motorisation
  • PIM Mounting Kit and Power Cable
  • 1m Cable Set* with PLS
  • 2m Ethernet Cable
  • Transit Case(s)
