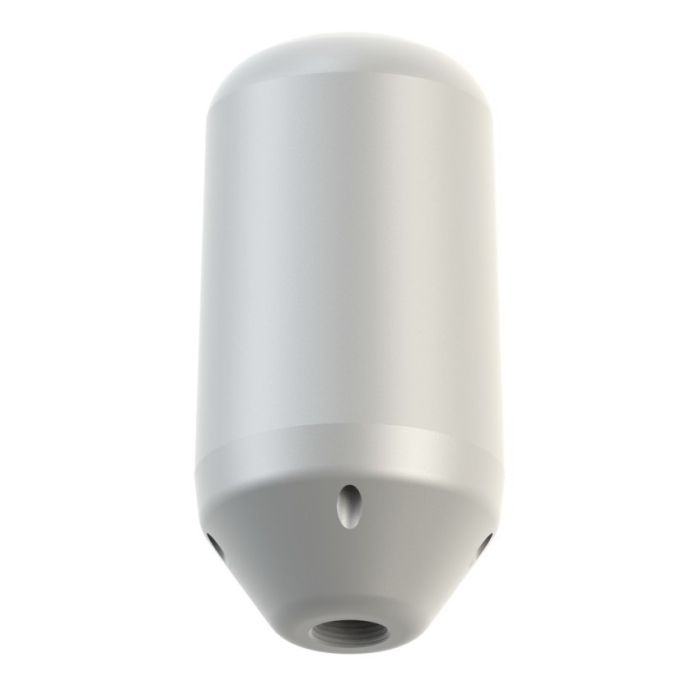

Passive Omnidirectional Antenna for Iridium (65000)
In stock
- BRAND:
- SCAN ANTENNA
- PART #:
- 65000
- ORIGIN:
- United States
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 2-3 BUSINESS DAYS
- SKU:
- Scan-Active-Marine-65000
US$0.00
Passive Omnidirectional Antenna for Iridium (65000)
| ELECTRICAL SPECIFICATIONS: | |
|---|---|
| FREQUENCY | 1616 - 1626.5 MHz (L-band) |
| SATELLITE SYSTEM | Iridium |
| IMPEDANCE | 50 ohm |
| POLARISATION | RHCP |
| AXIAL RATIO | < 6 dB |
| GAIN | 2 dBic |
| VSWR | < 1.5 |
| MECHANICAL SPECIFICATIONS: | |
|---|---|
| COLOR | White, non-glossy |
| HEIGHT | 188 mm, 191.5 mm including base |
| DIAMETER | 95 mm |
| MOUNTING | On flange 1"-14NF |
| OPERATING TEMPERATURE | -40C to +85C |
| CONNECTOR 1 | N (f) |
| ORDERING INFORMATION: | |
|---|---|
| PART NO. | 65000 |
| PART NO. | 65000IP (bulk) |
Specifications
| PART # | 65000 |
|---|---|
| PRODUCT TYPE | SATELLITE PHONE |
| USAGE AREA | 100% GLOBAL |
| BRAND | SCAN ANTENNA |
| NETWORK | IRIDIUM |
| ACCESSORY TYPE | ANTENNA |
| FREQUENCY | L BAND (1-2 GHz) |
| FEATURES | PASSIVE |
| CERTIFICATIONS | IRIDIUM CERTIFIED |
| HARMONIZED TARIFF NUMBER | 85177900 |
