SCAN Active Omnidirectional Antenna for Thuraya IP (60101-013)
Voice and GmPRS compatible
Features:
Active Antenna for Thuraya terminals with built-in active GPS antenna
Covers full footprint without pointing (omni-directional)
Optimized for Maritime use, but also suitable for land-based applications
Mounting Bracket included
Rugged design for reliable performance in harsh conditions
Smooth surface low loss radome
For use with: FDU-XT, SF2500, Seagull 5000(i), Hughes 7101, SO-2510, SG-2520, XT, FDU-2500, FDU-3500, SatTrans SAT-Office Docker, SAT-VDA Car Kit a.o.
DC Feeder required, but not included – order separately depending on configuration
Coaxial Cable-Kits available - see "Ordering Information" - "P/N" (Other cables available)
Cable-Kits are designed to comply with Thuraya specifications
60101-000, previously known as 60100, comes with mounting bracket included
Note: Cable loss between 3 dB and 7.5 dB is recommended
| ELECTRICAL SPECIFICATIONS: | |
|---|---|
| FREQUENCY | 1525 - 1559 MHz, 1626.5 - 1660.5 MHz, 1575.42 MHz |
| IMPEDANCE | 50 |
| SATELLITE SYSTEM | Thuraya, GPS |
| POLARISATION | LHCP |
| AXIAL RATIO | < 6 dB |
| GAIN | 0 dBic |
| G/T, TYP. | -22 dB/K |
| G/T, MIN. | -24 dB/K |
| EIRP, TYP. | 7 dBW |
| EIRP, MIN. | 5 dBW |
| LNA GAIN | GPS: 26 dB |
| SUPPLY VOLTAGE | SAT: 10 - 24 VDC, GPS: 5 VDC |
| POWER CONSUMPTION, AVERAGE | 12 W |
| POWER CONSUMPTION, PEAK | 26 W |
| MECHANICAL SPECIFICATIONS: | |
|---|---|
| COLOR | White |

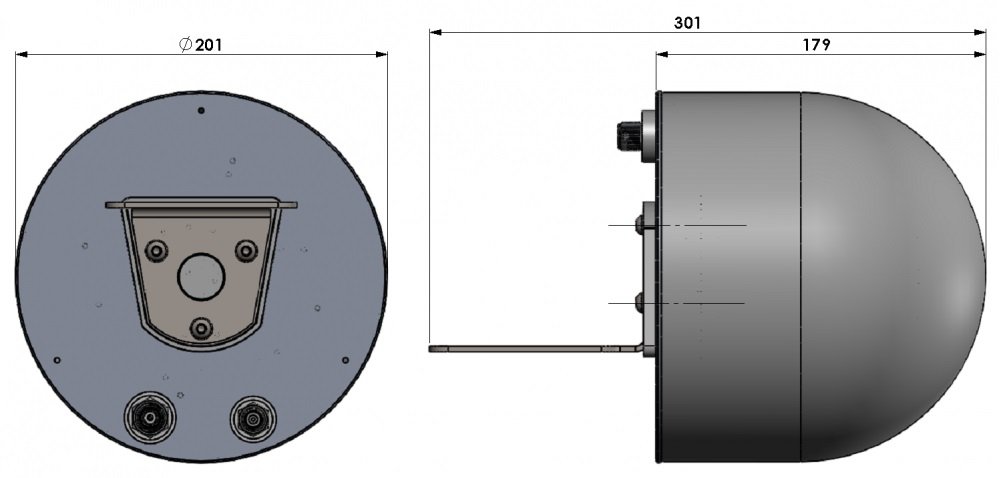

| HEIGHT | 301 mm |
| WEIGHT | 1.7 kg (Antenna only) |
| DIAMETER | 201 mm |
| MOUNTING | High grade AISI-316 stainless steel Mounting Bracket and mounting hardware included |
| MOUNTING PLACE | On pole or rail with supplied Mounting Bracket and U-bolts |
| MOUNTING INSTRUCTION | Included |
| MATERIALS | Silver anodized aluminium, PCB, Stainless steel, PTFE, ASA and brass |
| OPERATING TEMPERATURE | -25C to +55C |
| SURVIVAL TEMPERATURE | -40C to +80C |
| CONNECTOR | SAT: N-female |
| CONNECTOR 2 | GPS: TNC-female |
| CABLE | See "Part No." (Other cables available) |
| SERIAL NO. | On product label |
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | FIXED, MARITIME |
| BRAND | SCAN ANTENNA |
| PART # | 60101-013 |
| NETWORK | THURAYA |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| SERVICE | THURAYA IP |
| HEIGHT | 301 millimètres |
| DIAMETER | 201 meters |
| WEIGHT | 1,7 kg (Antenne uniquement) |
| ACCESSORY TYPE | ANTENNA |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| SURVIVAL TEMPERATURE | -40° to 80°C (-40° to 176°F) |
Thuraya Coverage Map
Thuraya's robust satellite network provides coverage in the most remote locations, ensuring congestion-free satellite communications to keep you connected at all times. From innovative satellite design to the reliability of each Thuraya device and accessory, we provide a truly superior satellite communication solution beyond the boundaries of terrestrial systems and cellular networks.
The Thuraya network does not cover north or south America.
