LimX Oli EDU Full-Size General Purpose Humanoid Robot + Free Delivery

LimX Oli EDU Full-Size General Purpose Humanoid Robot + Free Delivery

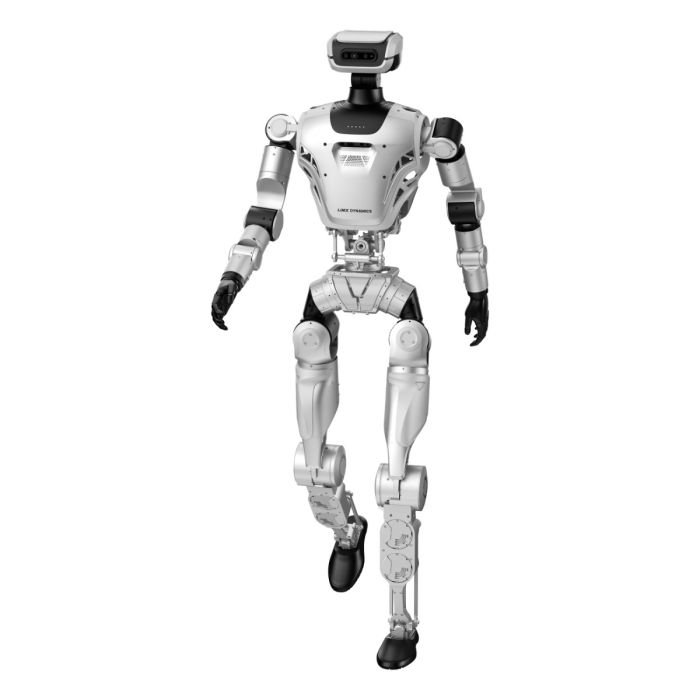

Oli EDU is characterized by a 165 cm human-scale body, ≤55 kg weight (battery included), and 33 active degrees of freedom (DoF)—a kinematic profile intended to support whole-body motion, bipedal locomotion experiments, and modular end-effector options.

Design and Features

Human-sized proportions and modular structure

Oli EDU is built around a 165 cm tall humanoid frame with a 55 cm shoulder width and approximately 70 cm arm length, aiming to support tasks and environments designed around human scale (e.g., door handles, benches, lab workstations). The system weight is listed at 55 kg (battery included).

A key design theme is modularity: the platform is presented as supporting different end-effectors (hands/grippers), and it is positioned for fast disassembly/assembly and integration workflows typical of R&D environments.

Degrees of freedom and kinematic layout

Oli EDU is specified with 33 total degrees of freedom (DoF). In the series kinematic breakdown shown by LimX, the robot includes:

• Single arm: 7 DoF

• Single leg: 6 DoF

• Waist: 3 DoF

• Head/neck: 2 DoF

This distribution reflects a typical research humanoid architecture: legs optimized for dynamic walking control, arms for reach and manipulation, and a multi-DoF waist and head to improve balance, field-of-view coverage, and human-like posture changes.

End-effectors and manipulation options

The Oli EDU specification indicates support for “humanoid hand” configurations and optional gripper/hand variants within the platform family, aligning with common research needs such as grasping benchmarks, tool use experiments, and teleoperation.

Technology and Specifications

Mobility and motion performance

LimX lists the Oli EDU maximum moving speed at 5 km/h, a figure consistent with indoor/outdoor campus and lab navigation use, as well as controlled gait research. The maximum load capacity per arm is 3 kg, which positions the platform for light manipulation tasks such as picking small objects, carrying instruments, or interacting with test fixtures rather than heavy industrial lifting.

Sensor suite and perception stack

Oli EDU is described as using a self-developed IMU and depth cameras for perception. The brochure highlights:

• 6-axis self-developed IMU

• Head-mounted depth camera: Intel RealSense D435i

• Chest-mounted depth camera: Intel RealSense D435i

A dual depth-camera arrangement (head + chest) is commonly used to reduce occlusions and improve near-field perception when arms/hands block the head camera during manipulation—useful for tasks like pick-and-place, obstacle avoidance, and telepresence.

Computing and onboard processing

The Oli EDU configuration lists a split computing architecture with motion control and perception computing:

• Motion control computing: RK3588 / 8GB / 64GB

• Perception computing: Orin NX (100 TOPS) / 16GB / 1TB

This division mirrors modern humanoid robot practice: deterministic motion loops and safety-critical control on one subsystem, with high-throughput perception and learning workloads on another.

Interfaces, networking, and power

For integration with external sensors and lab infrastructure, Oli EDU includes multiple physical interfaces:

• Ethernet: 1,000 Mbps RJ45

• USB ports: USB 3.0 / 3.2

• Power interfaces: 24V 5A and 12V 5A

Wireless connectivity and additional I/O options are also listed, including Wi-Fi 6 and BLE 5.4, along with USB hub support and high-speed Ethernet connectivity.

Battery and runtime

Oli EDU is listed with:

• Battery capacity: 9,500 mAh

• Battery life: about 1.5 hours

• Charger: 58.8V 10A

Software and developer tooling

LimX positions the Oli platform around a developer-facing software stack with:

• Python support

• Modular SDK

• High-level and low-level interfaces

• Motion libraries (including OTA update support) and documentation resources

Applications and Use Cases

Robotics education and curriculum labs

Oli EDU is marketed as an “EDU” configuration suitable for teaching humanoid fundamentals: kinematics, balance control, gait planning, perception pipelines, and robot software engineering. Its size and DoF count support demonstrations that smaller tabletop humanoids cannot, including whole-body motion and bimanual interactions.

Embodied AI and reinforcement learning research

With an onboard perception computer rated at 100 TOPS and a multi-sensor setup, Oli EDU is aligned with embodied AI research themes such as:

• Vision-based navigation and obstacle avoidance

• Policy learning for locomotion and manipulation

• Whole-body control and contact-rich behaviors

System integration and prototyping

The inclusion of Ethernet/USB/power interfaces supports adding external devices (e.g., LiDAR, additional cameras, grippers, compute accessories) and connecting to lab networks for logging, teleoperation, and fleet-style evaluation.

Human–robot interaction (HRI) and teleoperation

A full-size humanoid platform can support HRI studies—gesture, posture, and proxemics—especially when paired with remote control and high-level APIs. The brochure indicates remote control support and voice interaction functionality in EDU-class configurations.

Advantages / Benefits

Human-scale experimentation

At 165 cm tall, Oli EDU enables more realistic testing of human environments (handles, shelves, stairs, corridors) than compact humanoids.

Balanced capability for labs

Compared with many research platforms, Oli EDU’s combination of 33 DoF, dual depth cameras, and an embedded perception compute module is structured to reduce the “integration tax” often faced by labs assembling disparate components.

Developer-oriented software stack

Stated Python development support, modular SDK tooling, and simulation platform compatibility help shorten iteration cycles for robotics teams that rely on reproducible sim-to-real pipelines.

FAQ Section

What is the LimX Oli EDU humanoid robot?

The LimX Oli EDU is a full-size humanoid robot from LimX Dynamics intended for education, research, and development, specified at 165 cm tall with 33 degrees of freedom and a multi-sensor perception setup.

How does the LimX Oli EDU work?

Oli EDU combines a multi-DoF humanoid body with onboard motion control computing and a separate perception compute module, using an IMU and depth cameras to support balance, navigation, and interaction tasks through software APIs and developer tooling.

Why is a full-size humanoid robot important for research?

Human-scale humanoids allow experiments in real environments built for people—such as reaching shelves, walking through standard corridors, and interacting with common objects—supporting more realistic evaluation of locomotion, manipulation, and human–robot interaction.

What are the benefits of the LimX Oli EDU for labs and universities?

Key benefits include a human-sized platform (165 cm), a research-oriented DoF count (33 DoF), a dual depth-camera setup, and a developer-facing software approach (Python/SDK and simulation support) designed to speed up prototyping and curriculum use.

Summary

The LimX Oli EDU is positioned as a full-size, general-purpose humanoid robot optimized for education and R&D workflows, combining a 165 cm human-scale body, 33 DoF kinematics, onboard motion and perception computing, and a depth-camera/IMU perception stack. With developer-oriented software support and simulation-friendly tooling, it targets embodied AI, humanoid locomotion, and manipulation research where repeatable experiments and integration-ready hardware are central.
