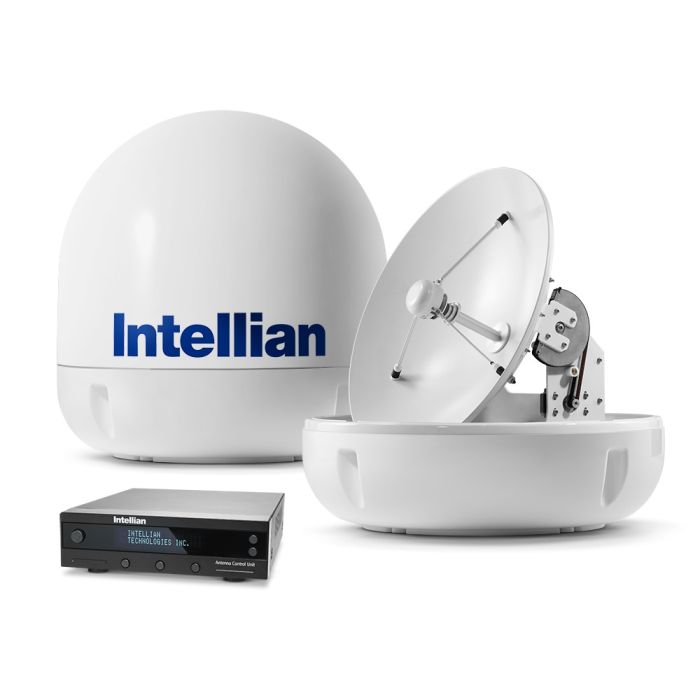

Intellian i6W 2-axis Global Marine Satellite TV System w/ 60cm (23.6") Dish & WorldView LNB (B4-619W2)

US$9,095.00 US$6,704.50
Overview

When equipped with Intellian’s proprietary WorldView LNB, the i6 can operate in any global coverage area without manual intervention.

BRAND:
INTELLIAN
MODEL:
i6W
PART #:
B4-619W2
ORIGIN:
South Korea
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
ALLOW 4-6 WEEKS FOR DELIVERY
Product Code:
Intellian-i6W-System-B4-619W2

Intellian i6W 2-axis Global Marine Satellite TV System w/ 60cm (23.6") Dish & WorldView LNB (B3-611W2)
Intellian's i6W is recognized for its commercial-grade build and exceptionally strong signal gain. The i6W TVRO 2-axis stabilized satellite antenna is the world's first global satellite TV antenna that receives multi-band and multi-polarization satellite TV services with ONE LNB module via DISEqC2.0 control function.

The Intellian exclusive WorldView LNB module is designed and manufactured by Intellian's in-house engineering team. This new LNB offers seamless switching between circular polarized programming in North, Central and South America, and linear polarized programming in Europe, the Middle East, and the Asia Pacific regions. The WorldView? LNB module makes switching LNB out inside the antenna dome when travelling to and from different regions obsolete.

Each system is fully integrated with Intellian's patented WRS? and DBT? technology, providing users with the ability to quickly acquire a solid signal without the burden of having to rely on rate sensors or gyros.

The i6W also features automatic satellite switching, and the accompanying Antenna Control Unit (ACU) comes equipped with a pre-programed, ready-to-use Global satellite library containing programming information for over one hundred global satellites.

A great entertainment solution for worldwide satellite coverage, the i6W is ideal for commercial vessels and yachts over 70 feet.

Global satellite services compatibility
Intellian i6W provides the ultimate convenience to connect you up to thousands of Free TV, Pay TV, Standard Definition, and High Definition programming all over the world with one LNB module which incorporates multi (8) LO frequencies.

Hands-free WorldViewTM LNB module
The 2nd generation, patent-pending WorldView LNB module is the latest innovation from Intellian. Unlike other TVRO system LNB’s with ±1,000 kHz stability, the Intellian WorldView LNB module is built on the highest stability of ±10 kHz which has 100 times more accuracy and greater signal sensitivity.

In addition, this LNB module receives multi-band and multi-polarization satellite TV services around the globe. Therefore, boaters don’t need to manually change the LNB inside the antenna dome each time the vessel crosses into a different satellite service region.

DVB-S2 digital TV reception
Some of the HD TV services have moved onto DVB-S2 and will be more in the future. Thanks to Intellian’s groundbreaking DVB-S2 digital TV technology, now boaters are able to enjoy their favorite DTH (Direct To Home) entertainment at sea, just like home.

Global satellite library
The i6W includes the pre-programmed global satellite library which allows boaters to select the desired satellite while travelling from region to region. Once the satellite is selected the WorldView LNB module will automatically switch to the corresponding local frequency to receive the signal.

Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELi6W
PART #B4-619W2
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE60 cm (23.6 inch)
WEIGHT20 kg (44 lb)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT72 cm (28.3 inch)
RADOME DIAMETER70 cm (27.6 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
VESSEL SIZEOVER 70 FEET
CERTIFICATIONSCE COMPLIANCE, FCC
POLARIZATIONCIRCULAR AND LINEAR
AZIMUTH RANGE680º
ELEVATION RANGE 5º to 90º
SHIP'S MOTIONRoll ±25º, Pitch ±15º
ROLL & PITCH RESPONSE RATE45º / sec
MINIMUM EIRP46dBW
TURNING RATE45º / sec
RF OUTPUTQUAD OUTPUT
