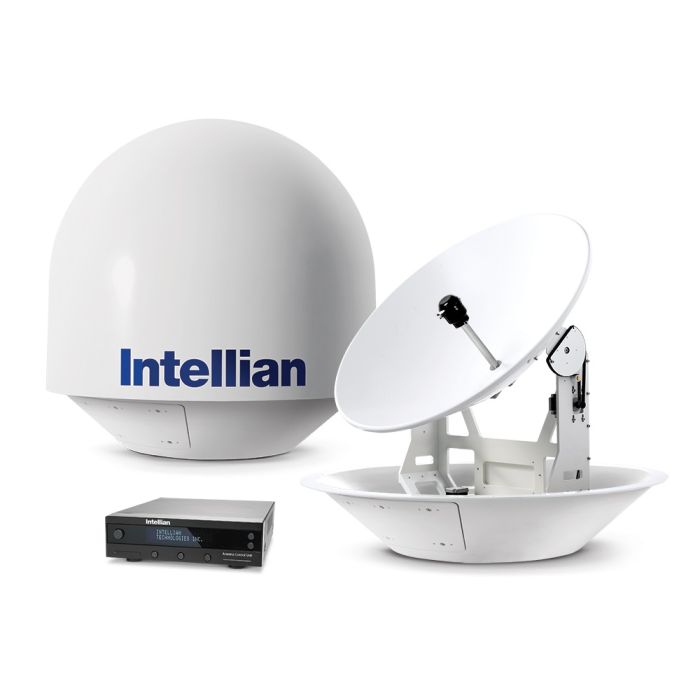

Intellian i9P Auto Skew US / Canada Marine Satellite TV System (B4-919AA)

US$12,495.00 US$9,371.00
Overview

Intellian i9 offers the most powerful and reliable satellite TV reception perfect for both recreational and commercial vessels over 80 feet. With integrated GPS and Auto Skew Angle Controls System, Intellian i9P makes the fastest, steadiest and the most reliable satellite search possible in the roughest sea conditions.

BRAND:
INTELLIAN
MODEL:
i9P
PART #:
B4-919AA
WARRANTY:
3 YEARS PARTS 1 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i9P-System-B4-919AA

Intellian i9P Marine Satellite TV System (B4-919AA)
The Intellian i9P offers the most powerful and reliable satellite TV receptions for both recreational and commercial vessels over 80 feet. The i9P's stylish design makes itself fit perfectly into modern streamlined vessels.

With its patent pending innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, even without any superfluous motion sensors, the i9P can always guarantee crystal-clear satellite TV reception with CD-quality sound even in the roughest sea conditions.

The most innovative design of i9P is the integrated HD and TriSat modules in its control unit. This makes the i9P the first marine antenna TV system in history that allows boaters to access hundreds of HDTV channels from leading satellite TV service providers without extra conversion tools or cable wirings. With Intellian MIM, boaters can enjoy flipping channels through automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. In addition, this control unit provides boaters an interactive operating platform through its PC controller software with a very friendly user interface and completed list of world satellite library.

The i9P also offers the integrated Auto Skew Angle Control system and highly precision GPS system which not only accelerates the speed of satellite signal acquisition time, but also enhances the quality of satellite reception in weak satellite signal coverage areas.

A firm hold on the signal
Intellian’s exclusive Dynamic Beam Tilting (DBT) uses a high performance, constantly adjusting sub-reflector which allows the antenna to remain the strongest signal at all times while the vessel is cruising at high speed.

Faster signal acquisition
Intellian’s exclusive Wide Range Search (WRS) algorithm allows the antenna to search, find and lock on to a signal with incredible speed and accuracy.

Most powerful performance
85cm reflector diameter with nationwide coverage for North & South America, Europe and the regional service around the globe.

Tune in your favorite HDTV channels
Intellian’s i9P provides HD channels from the Ku-band. The HD module is actually built-in to the Antenna Control Unit of the Intellian i9P for seamless integration and easy installation.

Built-in GPS
The Intellian i9P includes a built-in GPS for easier operation and faster signal acquisition.

Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU andmonitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

All-in-One system
Auto Skew Angle Control System, GPS and extended elevation range provided as a default option allow the i9P to have enhanced signal receptions in weak satellite signal coverage areas and have accuracy and easy operation wherever the vessel sails.

Intellian i9P System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELi9P
PART #B4-919AA
NETWORKBELL TV, DIRECTV, DISH NETWORK
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE85 cm (33.5 inch)
WEIGHT56,2 kg (124 lb)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT121.0 cm (47.5 inch)
RADOME DIAMETER113 cm (44.5 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
VESSEL SIZEOVER 80 FEET
CERTIFICATIONSCE COMPLIANCE, FCC
POLARIZATIONCIRCULAR AND LINEAR
AZIMUTH RANGE680º
ELEVATION RANGE-15º to 90º
SHIP'S MOTIONRoll ±25º, Pitch ±15º
ROLL & PITCH RESPONSE RATE30º / sec
MINIMUM EIRP44dBW
TURNING RATE30º / sec
RF OUTPUTDUAL / QUAD OUTPUT

Fully Automated System
Automatic satellite search and identification. 2-axis step motors to stabilize the pedestal.

Enhanced Antenna
Highly efficient 34 inch parabolic antenna enables 44dBW of minimum EIRP. RHCP / LHCP, Vertical / Horizontal polarization.

Wide Range Search (WRS) Algorithm
Competitor methods search for the narrow-bandwidth of the main lobe. However Intellian’s exclusive WRS searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.

Fully Automated Digital Video Broadcasting (DVB)
Identification DVB Decoder with CPLD enables high speed identification.

Dynamic Beam Tilting (DBT) Technology
A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement of the main-reflector means less noise and extends the product life.

DVB-S2 Signal Identification
High speed identification employing DVB-S2 Decoder.

New Type Antenna Control Unit
• Easy to change and update satellite information
• Easy antenna status check and automatic diagnosis
• Easy antenna control using PC interface

Automatic Polarization (Skew-angle) Control
Automatic Skew Angle Control System (-90°~ +90°) for Linear Horizontal / Vertical Polarization.

Built-in GPS and NMEA 0183 Interface Port
The i9P includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.

Intellian i9P Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

Intellian Sky Brazil Coverage Map
