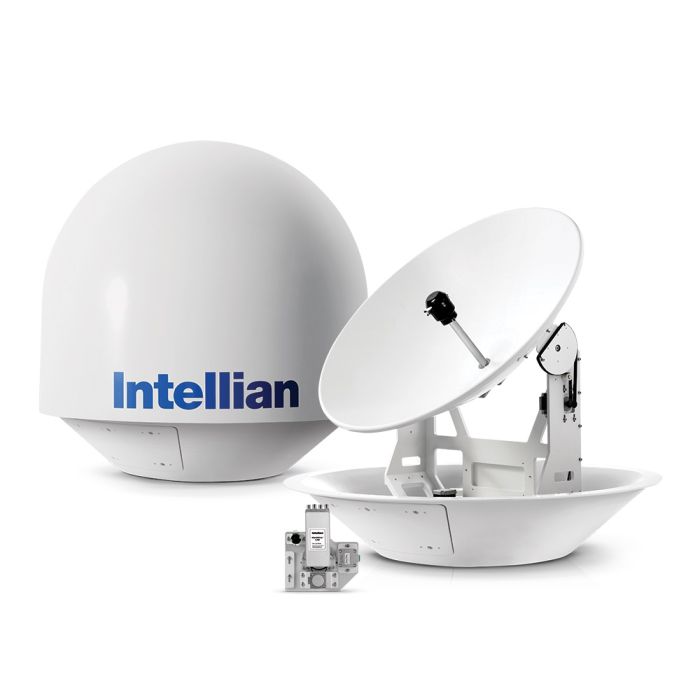

Intellian i9W 2-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (B4-919W2)

Intellian’s i9 offers extended coverage satellite TV reception, perfect for larger recreational or commercial vessels. With integrated GPS and Auto Skew Control, the Intellian i9P allows for fastest and reliable satellite tracking in the roughest sea conditions.

In stock

BRAND:
INTELLIAN
MODEL:
i9W
PART #:
B4-919W2
ORIGIN:
South Korea
Warranty:
3 YEARS PARTS 1 YEAR LABOR
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
SKU:
Intellian-i9W-System-B4-911W2
US$15,595.00
Intellian i9W 2-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (B3-911W2)

Global satellite services compatibility
Intellian i9W provides the ultimate convenience to connect you up to thousands of Free TV, Pay TV, Standard Definition, and High Definition programming all over the world with one LNB module which incorporates multi (8) LO frequencies.

Hands-free WorldView™ LNB module
The 2nd generation, patent-pending WorldView LNB module is the latest innovation from Intellian. Unlike other TVRO system LNB’s with ±1,000 kHz stability, the Intellian WorldView LNB module is built on the highest stability of ±10 kHz which has 100 times more accuracy and greater signal sensitivity.

In addition, this LNB module receives multi-band and multi-polarization satellite TV services around the globe. Therefore, boaters don’t need to manually change the LNB inside the antenna dome each time the vessel crosses into a different satellite service region.

DVB-S2 digital TV reception
Some of the HD TV services have moved onto DVB-S2 and will be more in the future. Thanks to Intellian’s groundbreaking DVB-S2 digital TV technology, now boaters are able to enjoy their favorite DTH (Direct To Home) entertainment at sea, just like home.

Global satellite library
The i9W includes the pre-programmed global satellite library which allows boaters to select the desired satellite while travelling from region to region. Once the satellite is selected the WorldView LNB module will automatically switch to the corresponding local frequency to receive the signal.

Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

Intellian i9 System Diagram

Specifications

MODEL i9W
PART # B4-919W2
PRODUCT TYPE SATELLITE TV
USAGE AREA REGIONAL - SEE COVERAGE MAP
BRAND INTELLIAN
USE TYPE MARITIME
ACCESSORY TYPE ANTENNA
ANTENNA SIZE 85 cm (33.5 inch)
OPERATING TEMPERATURE -25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE -40°C to 80°C (-40°F to 176°F)
FREQUENCY Ku BAND
CERTIFICATIONS CE COMPLIANCE, FCC
HARMONIZED TARIFF NUMBER 85176200
WEIGHT 56,2 kg (124 lb)
RADOME HEIGHT 121.0 cm (47.5 inch)
RADOME DIAMETER 113 cm (44.5 inch)
RECEPTION FREQUENCY Ku-band: 10.7 ~ 12.75 GHz
POLARIZATION CIRCULAR AND LINEAR
MINIMUM EIRP 44dBW
AZIMUTH RANGE 680º
ELEVATION RANGE -15º to 90º
SHIP'S MOTION Roll ±25º, Pitch ±15º
ROLL & PITCH RESPONSE RATE 30º / sec
TURNING RATE 30º / sec
VESSEL SIZE OVER 80 FEET
RF OUTPUT DUAL / QUAD OUTPUT

Intellian i9W Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

Intellian Sky Brazil Coverage Map
